Description

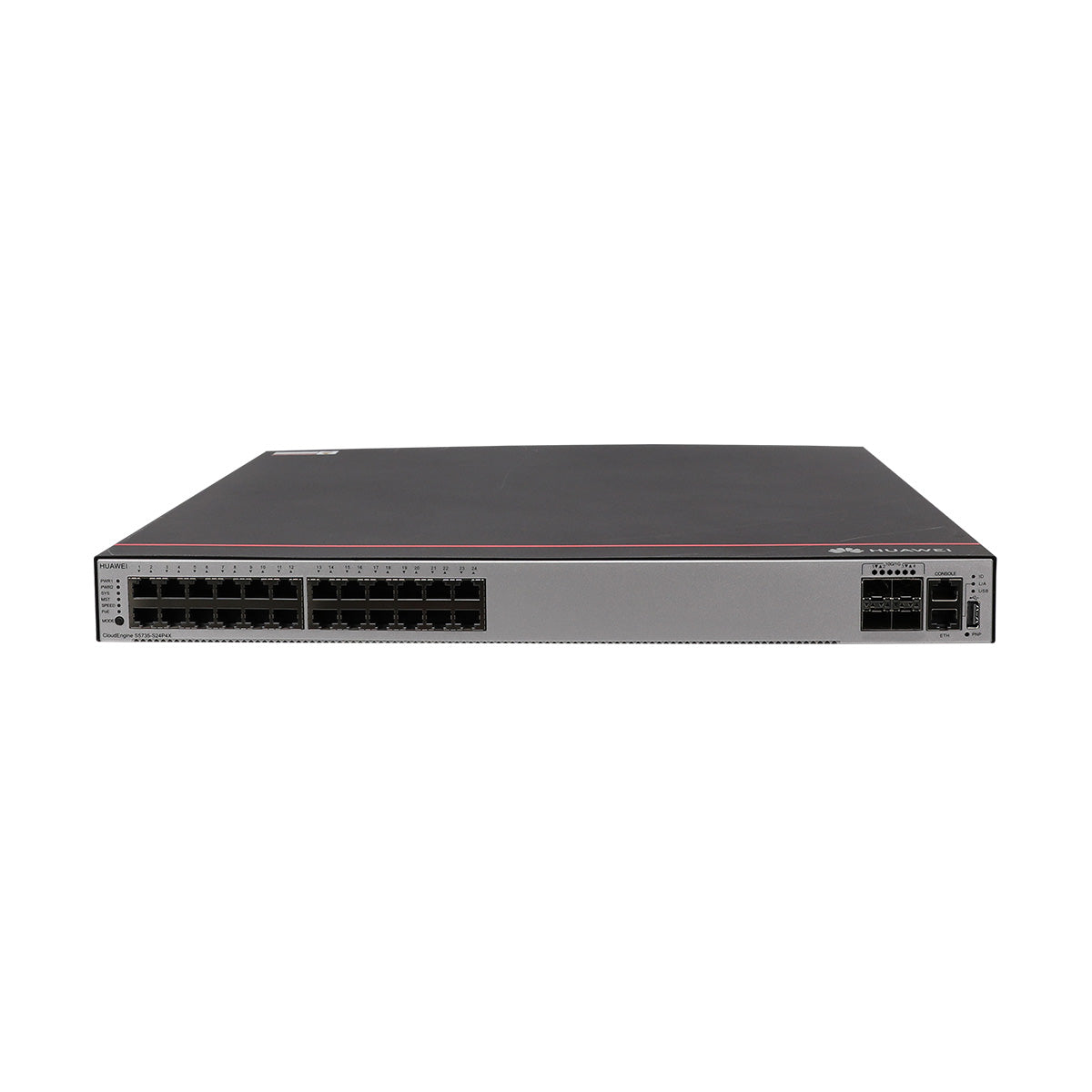

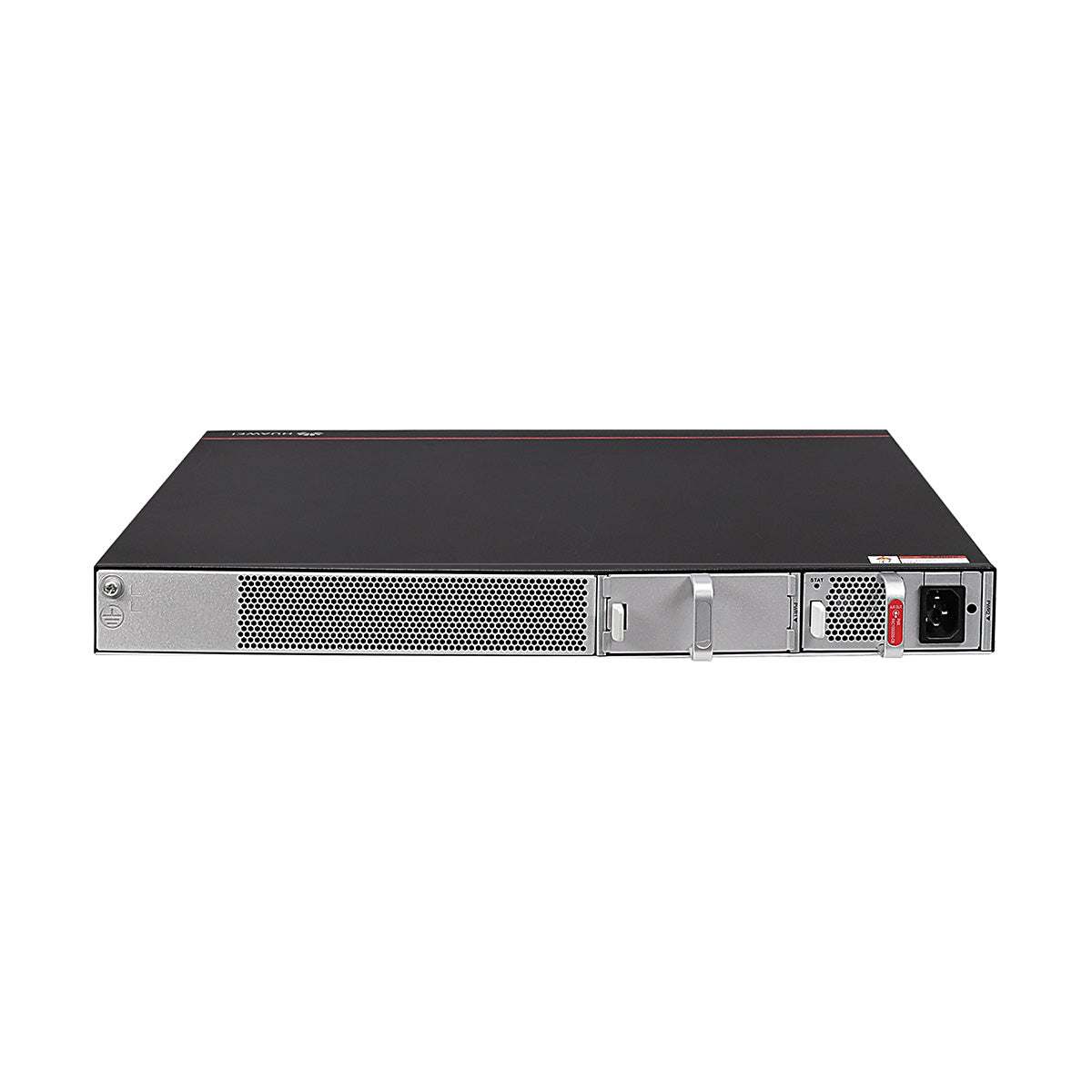

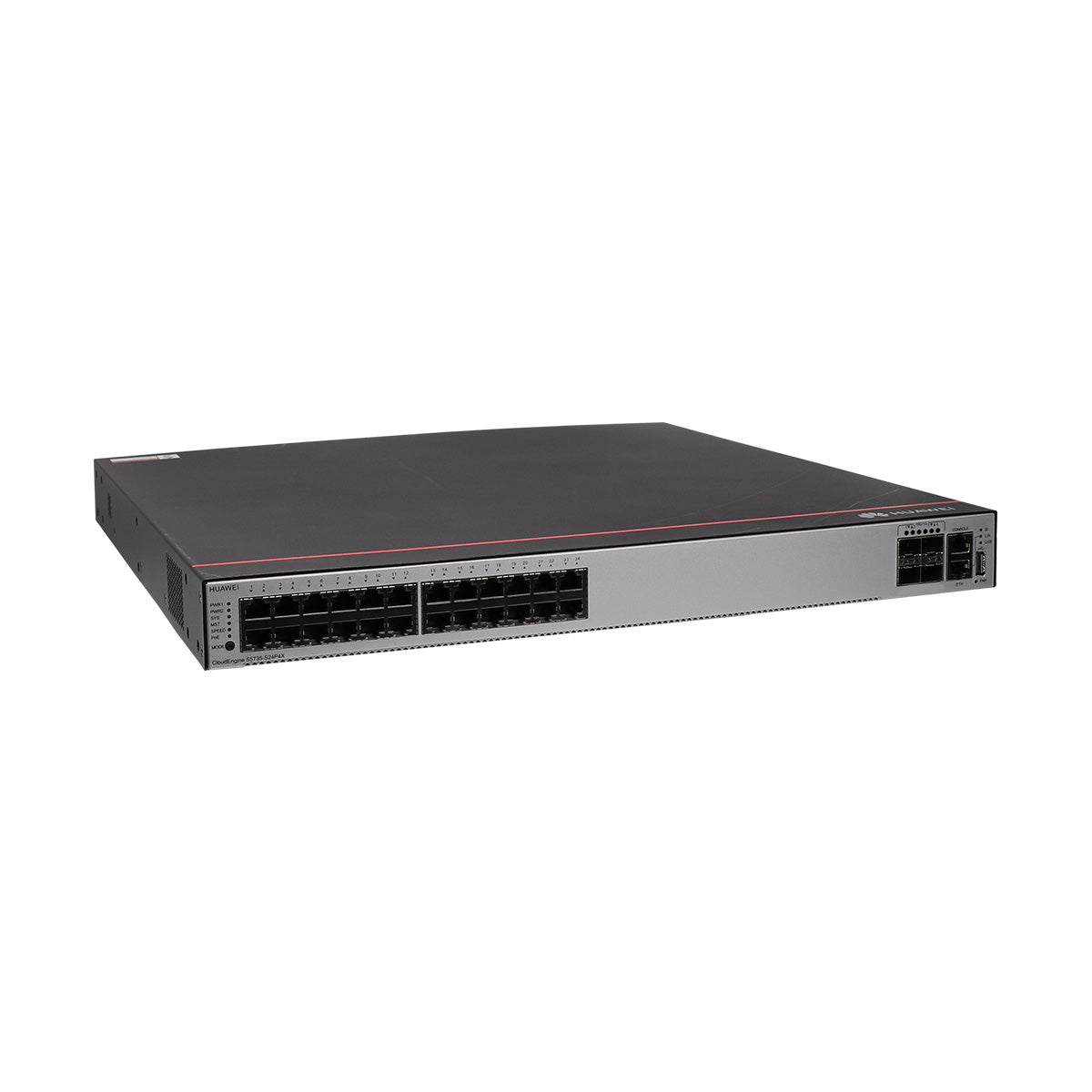

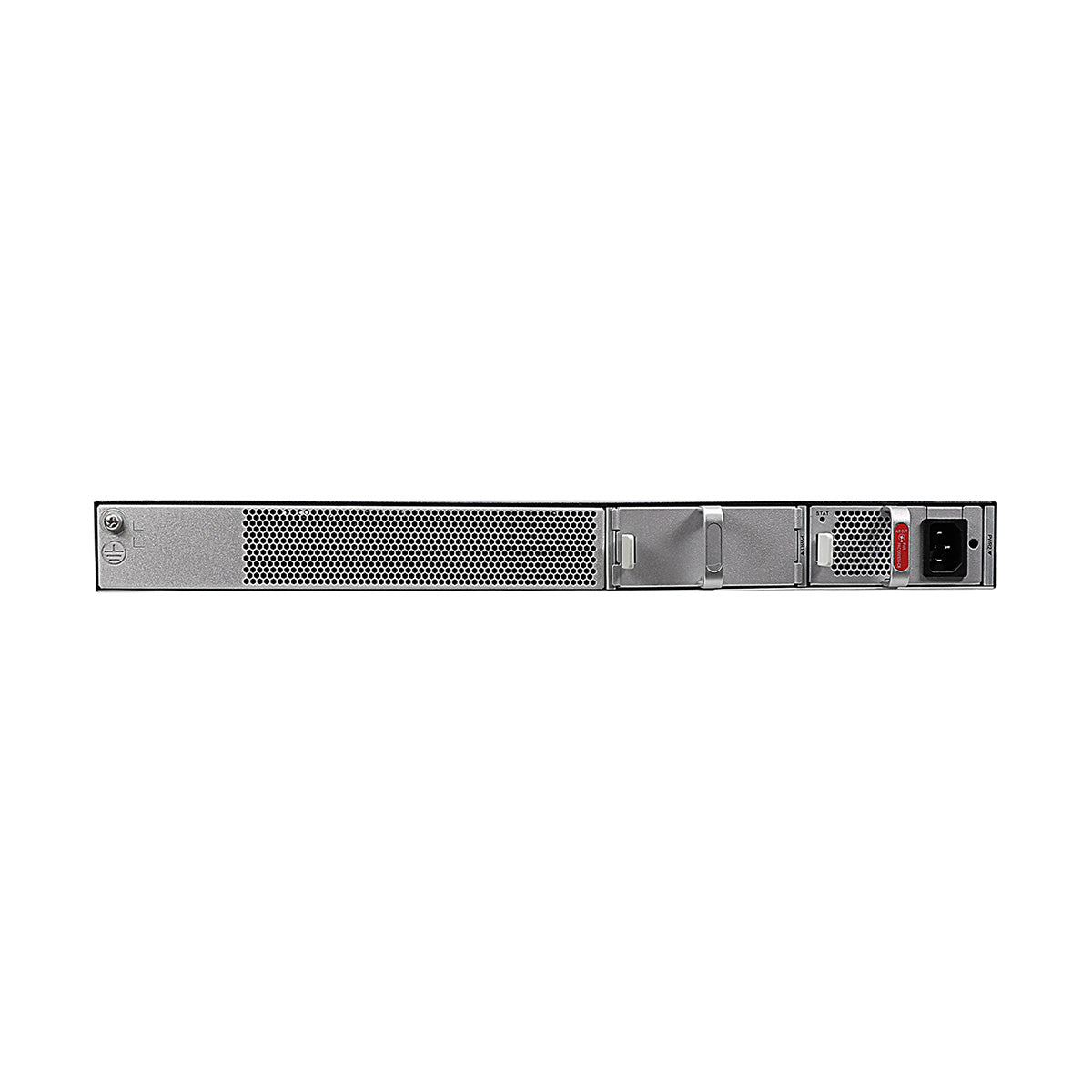

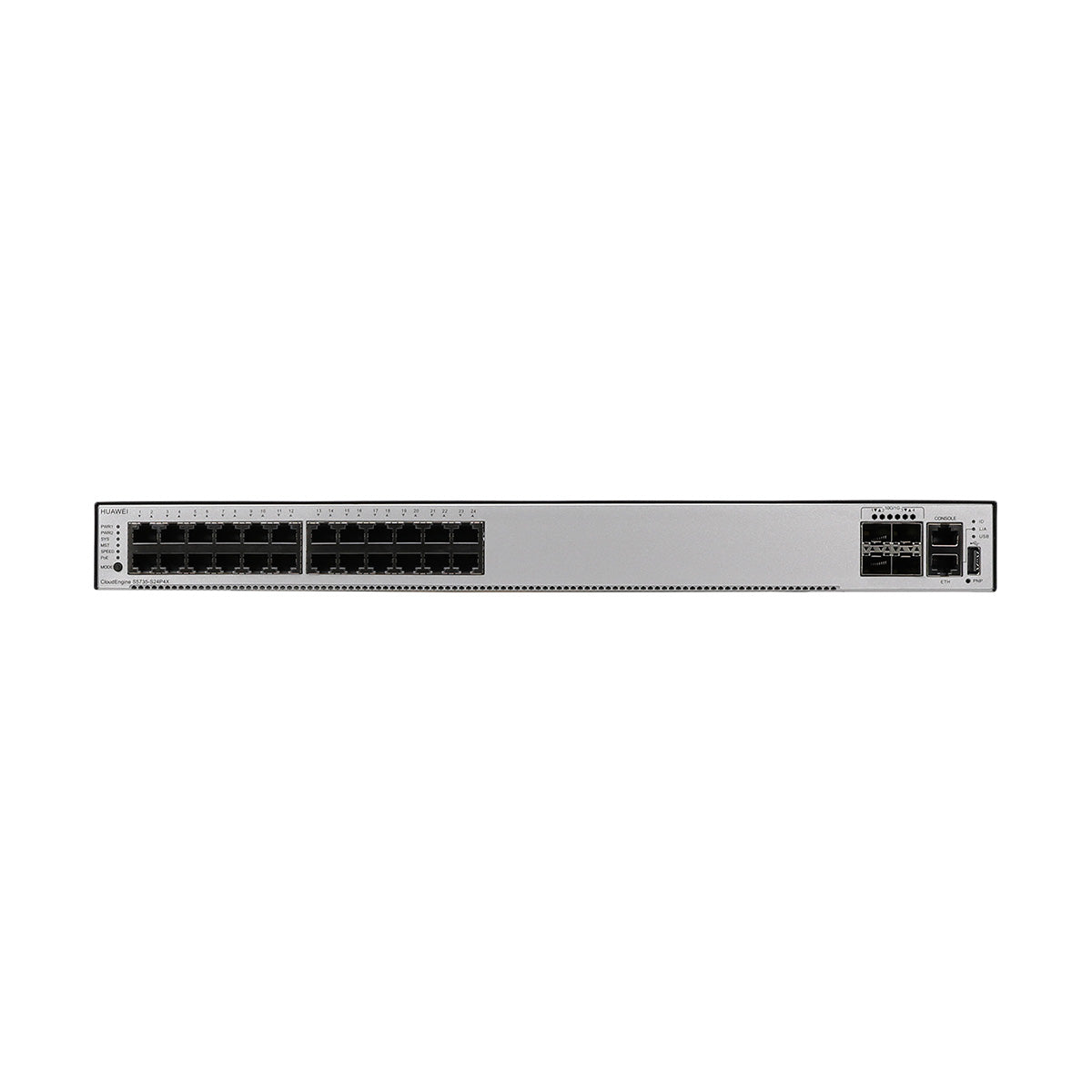

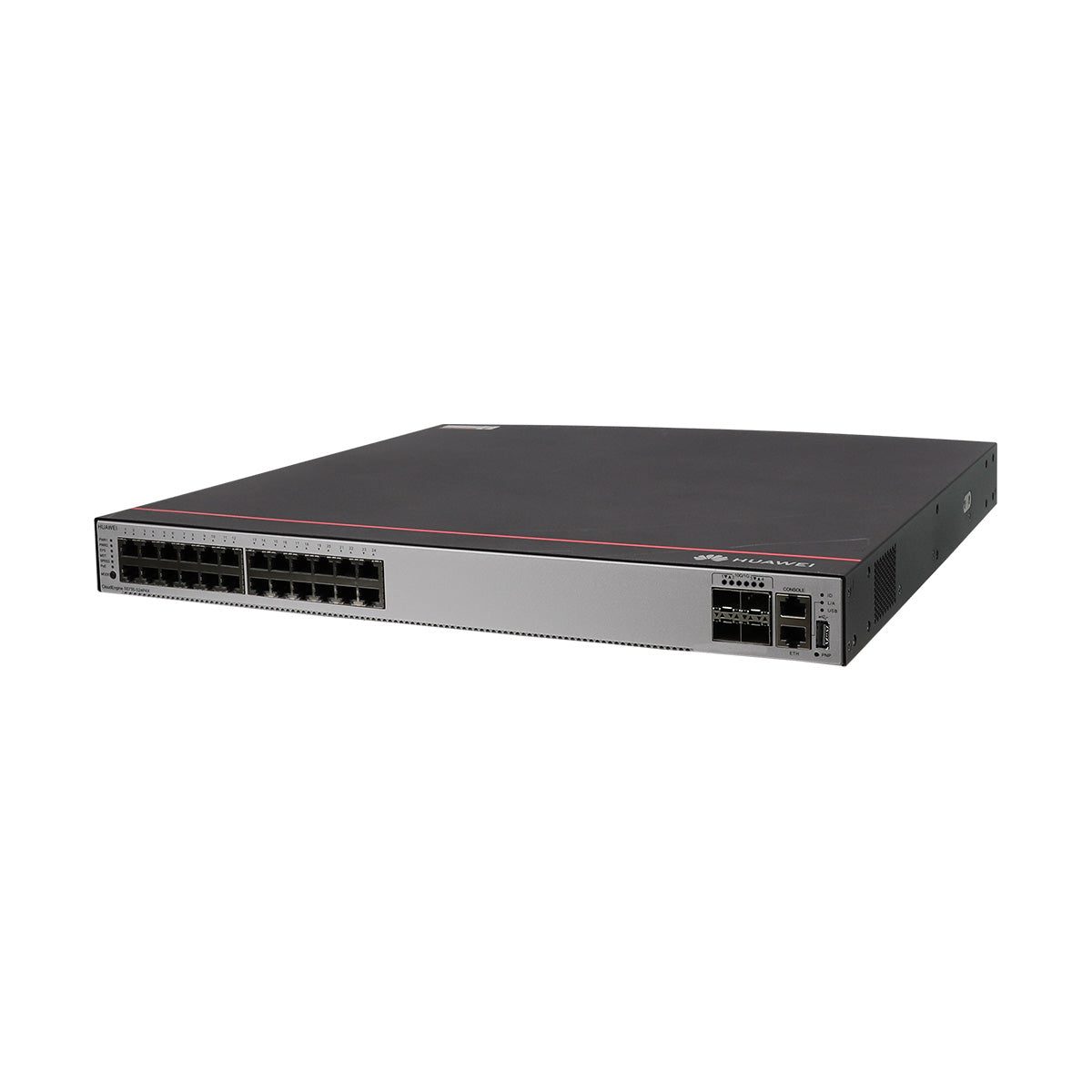

Huawei CloudEngine S5735-S24P4X 24-Port Gigabit PoE+ Layer 3 Managed Switch
Overview
The huawei s5735-s24p4x is a high-performance Layer 3 gigabit poe switch designed specifically for enterprise campus networks, smart buildings, surveillance systems, and high-density access environments. As a premier model within the huawei s5735 series, it provides 24 Gigabit PoE+ RJ45 downlinks paired with four 10GE SFP+ uplink ports. This versatile s5735 s24p4x platform enables flexible fiber aggregation and high-speed backbone connectivity for modern enterprise network architectures.
If your infrastructure demands robust power delivery alongside advanced Layer 3 routing (OSPF, BGP) and intelligent stacking (iStack), this enterprise poe switch delivers unparalleled reliability. Widely deployed across WiFi 6 wireless networks, IP surveillance systems, and VoIP communication systems, the huawei switch s5735 serves as the optimal backbone for hotels, schools, hospitals, retail chains, and enterprise branch offices.
💡 Related Selection Guide: Unsure which model from the huawei s5735 family fits your campus? Read our comprehensive architectural breakdown: Best Campus Ethernet Switch 2025: Huawei CloudEngine S5735 Series.
📥 Download Technical Specs: Planning a major infrastructure rollout? Enter your corporate email below to download the official huawei s5735 datasheet to verify maximum routing table metrics, precise PoE budgets, and MTBF data for the entire huawei cloudengine s5735 line.
Key Highlights
1. 24 Gigabit PoE+ Access Ports
Functions as a heavy-duty 24 port poe switch, fully supporting IEEE 802.3af/at PoE+ standards. It provides simultaneous high-speed data and stable electrical power across the s5735 s24p4x copper interfaces for:
-
WiFi 6 / WiFi 5 access points
-
High-definition IP surveillance cameras
-
Corporate VoIP phones
-
Access control terminals and IoT sensors
2. High-Capacity PoE Power (Up to 1600W)
When configured with dual 1000W redundant power modules, this huawei s5735 switch delivers a massive maximum PoE power budget of 1600W. This level of power density allows the huawei cloudengine s5735 to effortlessly support full-building CCTV arrays and high-density wireless LAN deployments.
-
Staging Pro-Tip: For detailed guidance on calculating PoE distribution across the s5735, refer to our Huawei PoE Switches: Optimizing Enterprise Networks Guide.
3. 4 x 10G SFP+ Uplink Ports
Eliminate upstream bottlenecks. The s5735-s24p4x features four native 10GE SFP+ slots, providing high-speed fiber uplinks for:
-
Core switch aggregation
-
Data center connectivity
-
Campus building interconnection
-
To ensure you select the correct optics for your huawei switch s5735, review our 10G SFP Transceivers Buying Guide.
4. Advanced Layer 3 Routing Protocols
Unlike basic access switches, this enterprise poe switch natively supports comprehensive Layer 3 capabilities. The cloudengine s5735 routing matrix includes Static Routing, RIP, OSPF, BGP, and IS-IS, allowing your IT team to seamlessly orchestrate multi-subnet and multi-site architectures directly at the edge layer.
5. Intelligent Stacking (iStack)
Simplify your network management. The s5735 supports iStack technology, allowing up to 9 physical units to be clustered and managed as a single logical switch. This ensures effortless scalability and higher redundancy across your campus.
6. Enterprise-Grade Security Borders
The huawei s5735 features multi-layer perimeter protection, including 802.1X authentication, DHCP Snooping, Dynamic ARP Inspection, ACL policies, and port isolation to defend against unauthorized network intrusions.
Recommended Application Scenarios
-
🏢 Enterprise Office Infrastructure: A dependable huawei s5735 switch acting as the core access layer.
-
🎥 IP Surveillance (CCTV): Powers high-draw PTZ cameras reliably.
-
📶 WiFi 6 Wireless Networks: The perfect 24 port poe switch for next-generation APs.
-
🏥 Hospitals and Healthcare: Secure, segmented patient data routing.
-
🏭 Smart Buildings: Powers IoT devices, POS terminals, and environmental sensors.
Recommended Accessories
To maximize the performance of your huawei s5735-s24p4x, we recommend using original Huawei-compatible modules and redundant power supplies.
| Category | Product Model | Description |
|---|---|---|
| SFP+ Transceiver | SFP-10G-SR | 10G multimode fiber module, up to 300m, short-range indoor connectivity |
| SFP+ Transceiver | SFP-10G-LR | 10G single-mode fiber module, up to 10km, campus interconnection |
| SFP+ Transceiver | SFP-10G-ER | 10G extended reach module, up to 40km, metro access networks |
| SFP+ Transceiver | SFP-10G-ZR | 10G ultra-long reach module, up to 80km, backbone networks |
| Power Module | PAC600S56-CB | 600W AC PoE power module for standard deployments |
| Power Module | PAC1000S56-DB | 1000W AC PoE power module for high-density PoE environments |
| Cooling Module | FAN-023A-B | Hot-swappable redundant fan module for continuous operation |
Comparison with Similar Items
| Feature | S5735-S24P4X | S5735-S24T4X | S5735-S48P4X |
|---|---|---|---|
| Downlink Ports | 24GE PoE+ | 24GE | 48GE PoE+ |
| Uplink Ports | 4 x 10GE SFP+ | 4 x 10GE SFP+ | 4 x 10GE SFP+ |
| PoE Support | Yes | No | Yes |
| PoE Budget | Up to 1600W | N/A | Up to 1600W |
| Switching Capacity | 128 Gbps / 336 Gbps | 128 / 336 Gbps | 176 / 432 Gbps |
| Forwarding Rate | 96 Mpps | 96 Mpps | 132 Mpps |
| MAC Table | 32K entries | 32K entries | 32K entries |
| VLAN Support | 4094 VLANs | 4094 VLANs | 4094 VLANs |
| Stacking | iStack (up to 9) | iStack | iStack |
| Ideal Use Case | WiFi / CCTV / VoIP / Campus | Basic access | High-density enterprise PoE |
Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model | S5735-S24P4X | Enterprise Layer 3 PoE+ access switch |
| Downlink Ports | 24 x 10/100/1000BASE-T PoE+ | Provides power and data to APs, cameras, phones, and IoT devices |
| Uplink Ports | 4 x 10GE SFP+ | High-speed fiber uplink to core network or aggregation layer |
| Switching Capacity | 128 Gbps / 336 Gbps | Internal forwarding bandwidth for traffic switching performance |
| Forwarding Rate | 96 Mpps | Packet processing capacity under full load |
| MAC Address Table | 32K entries | Layer 2 address learning capacity for large networks |
| VLAN Support | 4094 VLANs (802.1Q) | Network segmentation for security and isolation |
| PoE Budget | Up to 1600W (dual PSU) | Maximum power delivery for connected PoE devices |
| Routing Protocols | Static, RIP, OSPF, BGP, IS-IS | Layer 3 routing for enterprise and multi-site networks |
| IPv6 Support | Full IPv6 stack | Future-proof network addressing support |
| QoS | 8 queues per port | Traffic prioritization for voice, video, and data |
| Security Features | 802.1X, ACL, DHCP Snooping, ARP Inspection | Prevents unauthorized access and network attacks |
| Stacking | iStack up to 9 units | Combines multiple switches into one logical device |
| Management | Web / CLI / SNMP / SSH / RMON | Centralized monitoring and configuration |
| Power Consumption | 65W (base system, no PoE load) | Device idle power usage |
| Power Supply | Dual AC/DC modular PSU | Redundant power for high availability |
| Operating Temperature | 0°C to 50°C | Safe operating range for enterprise deployment |
| Dimensions | 442 420 43.6 mm | Standard 1U rackmount form factor |
| Weight | 7.39 kg (with packaging) | Shipping and installation weight |
| Warranty | Limited lifetime warranty | Enterprise-grade manufacturer assurance |
Why Choose Huawei S5735-S24P4X?
The Huawei S5735-S24P4X stands out as a high-density enterprise access switch designed for modern converged networks.
-
Industry-leading up to 1600W PoE power for large-scale device deployments
-
True Layer 3 routing capability for scalable enterprise architecture
-
High-speed 410G uplinks for future-proof backbone connectivity
-
Optimized for WiFi 6 AP + CCTV + VoIP converged networks
-
Intelligent stacking (iStack) for simplified expansion and management
-
Enterprise-grade security protecting critical business networks
-
Proven deployment in campus, hotel, retail, and smart building environments
-
Reliable Huawei carrier-grade networking architecture
This makes it an ideal choice for organizations requiring stability, scalability, and high PoE density in a single access-layer switch.
