Description

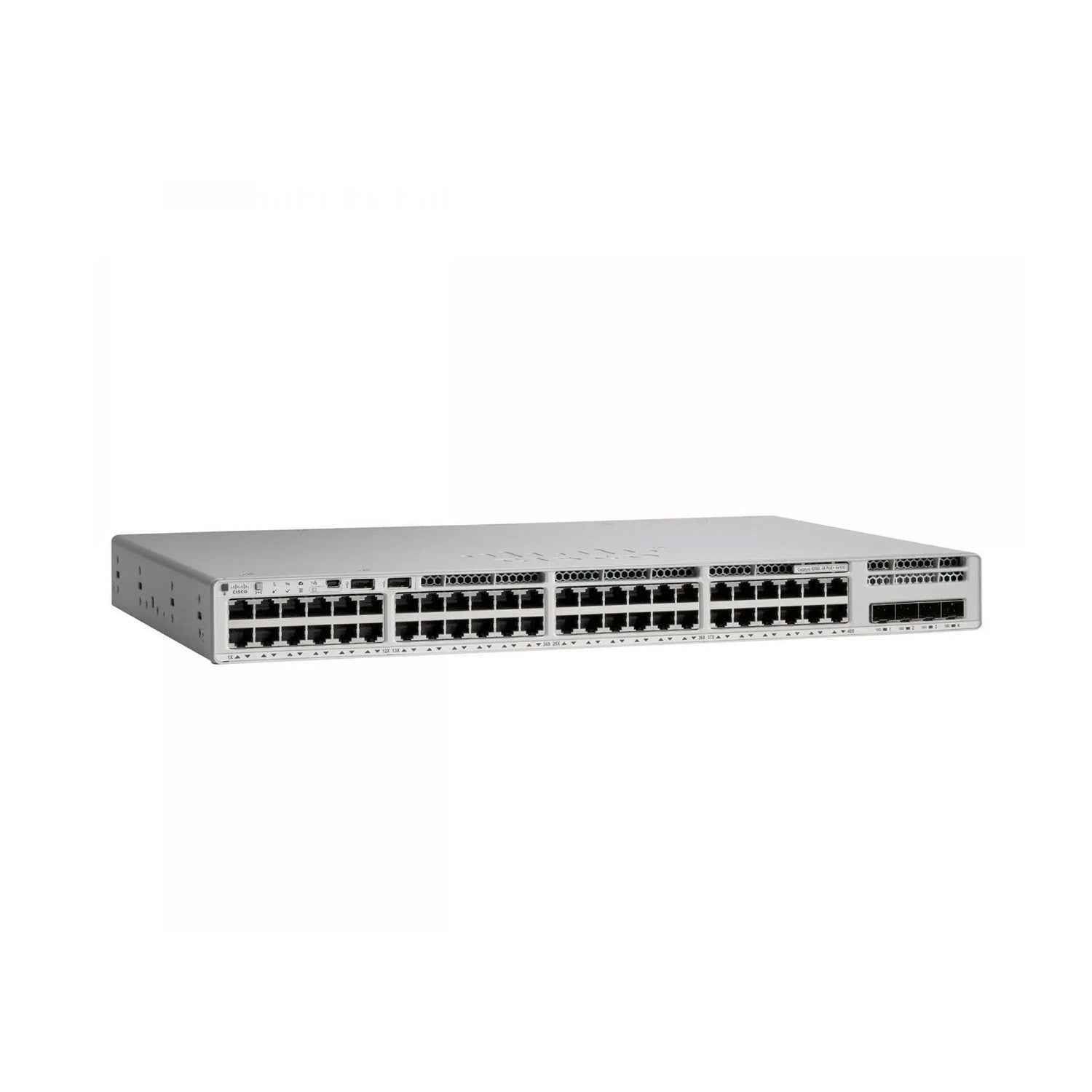

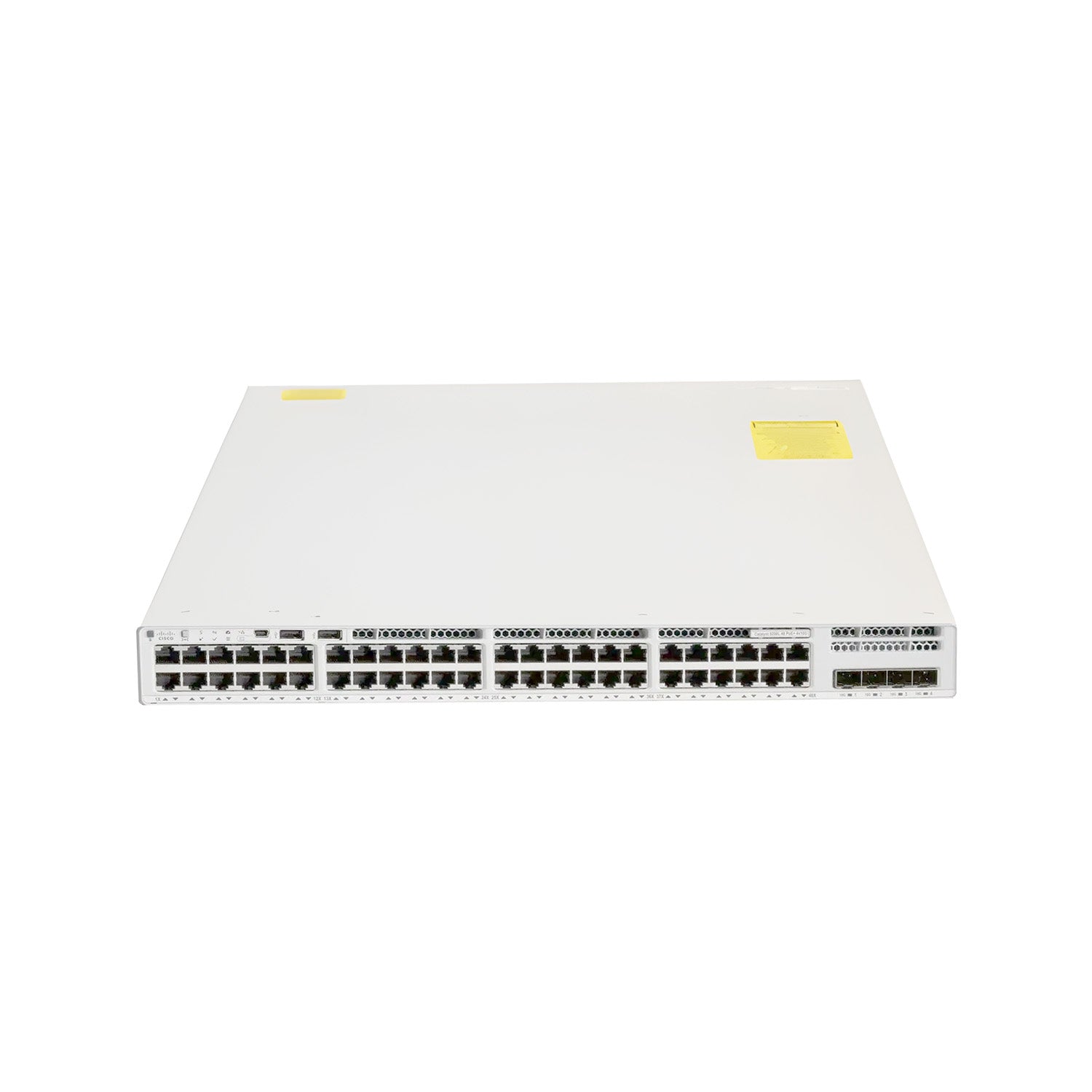

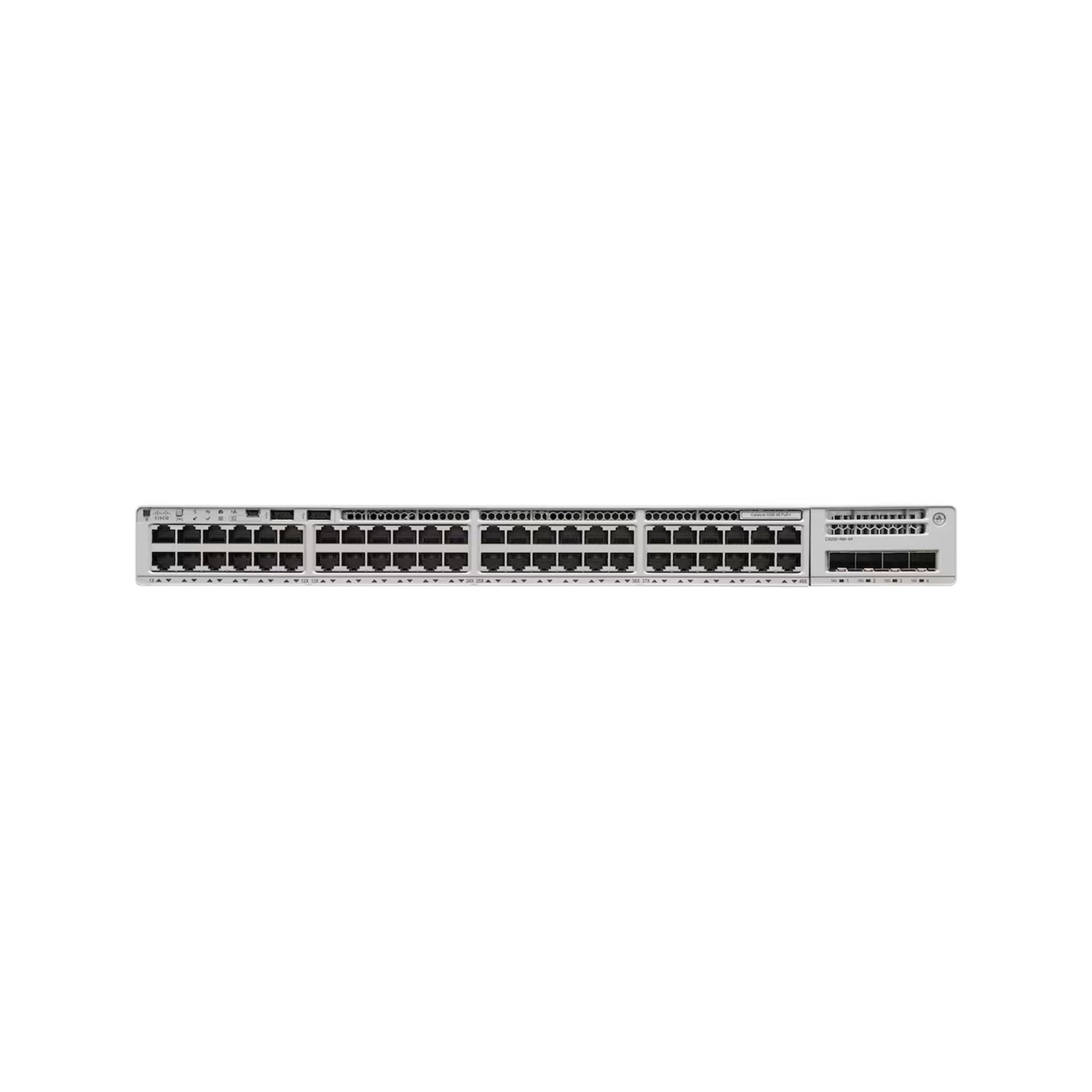

Cisco Catalyst C9200L-48T-4X-E | 48-Port L3 Gigabit Data Switch | Network Essentials
Why Choose the C9200L-48T-4X-E?
-
Enterprise Pedigree: Same secure, always-on foundation as global enterprise Catalyst 9000 switches, optimized for cost-effective branch deployment.
-
Superior Reliability: MTBF 503,400 hours; fixed redundant fans ensure continuous operations.
-
SD-Access Entry-Level: Supports one virtual network for branch network virtualization.
-
Deterministic Performance: 130.95 Mpps standalone forwarding rate and 176 Gbps switching capacity.
-
Future-Proof Hardware: UADP 2.0 Mini ASIC programmable pipeline supports L2/L3 innovations.
Overview
The Cisco Catalyst C9200L-48T-4X-E is a compact, fixed-uplink access switch in the Catalyst 9200L family, designed for high-density branch offices, SMBs, and small-campus deployments.
-
48 autosensing 10/100/1000 RJ-45 ports provide reliable connectivity for workstations, printers, and servers.
-
4×10G fixed SFP+ uplinks offer immediate high-speed aggregation without optional modules.
-
StackWise-80 stacking allows up to 8 switches to operate as a single logical unit with sub-50 ms failover, ensuring uninterrupted performance.
-
Powered by UADP 2.0 Mini ASIC, supporting future L2/L3 enhancements, QoS, and programmable network features.
-
Runs Cisco IOS XE with Network Essentials, providing fundamental Layer 2/3 services (OSPF, RIP, static routing) and integration with Cisco DNA Center or Meraki Dashboard for automation and monitoring.
-
Energy-efficient and secure, featuring IEEE 802.3az EEE, AES-128 MACsec, Secure Boot, and Trust Anchor protection.
Ideal for administrative networks, non-PoE branch closets, and high-performance SMB deployments where reliability, efficiency, and predictable Layer 3 performance are required.
Highlights
-
High-Density Branch Access: 48 autosensing RJ-45 ports for wired workstations, printers, and servers.
-
Fixed 10G Backbone: 4×10G SFP+ uplinks for immediate aggregation; no optional modules needed.
-
StackWise-80 Resiliency: Stack up to 8 units (384 ports) with 80 Gbps bandwidth and sub-50 ms stateful failover.
-
UADP 2.0 Mini ASIC: Programmable pipeline for future L2/L3 and QoS enhancements.
-
Enhanced Security Fabric: AES-128 MACsec, Trust Anchor, Secure Boot, image signing.
-
Sustainability & Efficiency: ENERGY STAR® certified, IEEE 802.3az EEE reduces branch closet power use.
-
Operational Simplicity: Manage via CLI, on-prem Cisco Catalyst Center, or cloud via Meraki Dashboard.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C920L-STACK-KIT= | Stacking Module | StackWise-80 kit (2 adapters + cable) |
| STACK-T4-50CM/1M/3M | Stacking Cable | 0.5m, 1m, 3m cables |
| PWR-C5-125WAC | Power Supply | 125 W AC platinum PSU |
Comparison with Similar Models
| Model | Downlinks | Uplinks | License | Stacking |
|---|---|---|---|---|
| C9200L-48T-4X-E | 48×1 GbE data-only | 4×10 Gbps SFP+ | Essentials | 80 Gbps |
| C9200L-48T-4X-A | 48×1 GbE data-only | 4×10 Gbps SFP+ | Advantage | 80 Gbps |
| C9200L-48P-4X-E | 48×1 GbE PoE+ | 4×10 Gbps SFP+ | Essentials | 80 Gbps |
| C9200L-48P-4X-A | 48×1 GbE PoE+ | 4×10 Gbps SFP+ | Advantage | 80 Gbps |
Specifications
| Parameter | Specification | Technical Value / Use Case |
|---|---|---|
| Product Code | C9200L-48T-4X-E | Fixed 48-port Data-Only Essentials SKU |
| Forwarding Rate | 130.95 Mpps (Standalone) / 190 Mpps (Stacked) | Wire-speed processing for dense branch traffic |
| Switching Capacity | 176 Gbps (Standalone) / 256 Gbps (Stacked) | Non-blocking L3 connectivity |
| Stacking Technology | StackWise-80 (up to 8 members) | Single-IP management with 80 Gbps bandwidth |
| Routing Protocols | OSPF (1,000 routes), RIP, Static, EIGRP Stub | Secure routed branch access |
| Memory | 2 GB DRAM / 4 GB Flash | Supports IOS XE programmability |
| MAC Address Table | 16,000 entries | Medium-to-large branch client density |
| Reliability (MTBF) | 503,400 hours | Mission-critical durability |
| Weight | 9.97 lbs (4.53 kg) | Compact 19-inch rack deployment |
| Power Supply | PWR-C5-125WAC | High-efficiency AC platinum PSU |
Use Cases & Deployment Scenarios
-
Branch Offices & SMBs: High-density wired access for 48 clients.
-
Small Campus Access: Administrative offices, classrooms, labs.
-
Wi-Fi 6 Aggregation: Supports APs via injectors; 10G uplinks provide high-speed backhaul.
-
SD-Access Edge Node: Entry-level device supporting 1 VN for branch virtualization.
-
Energy-Efficient Deployments: Low-power, low-heat branch closets or retail offices.
