Description

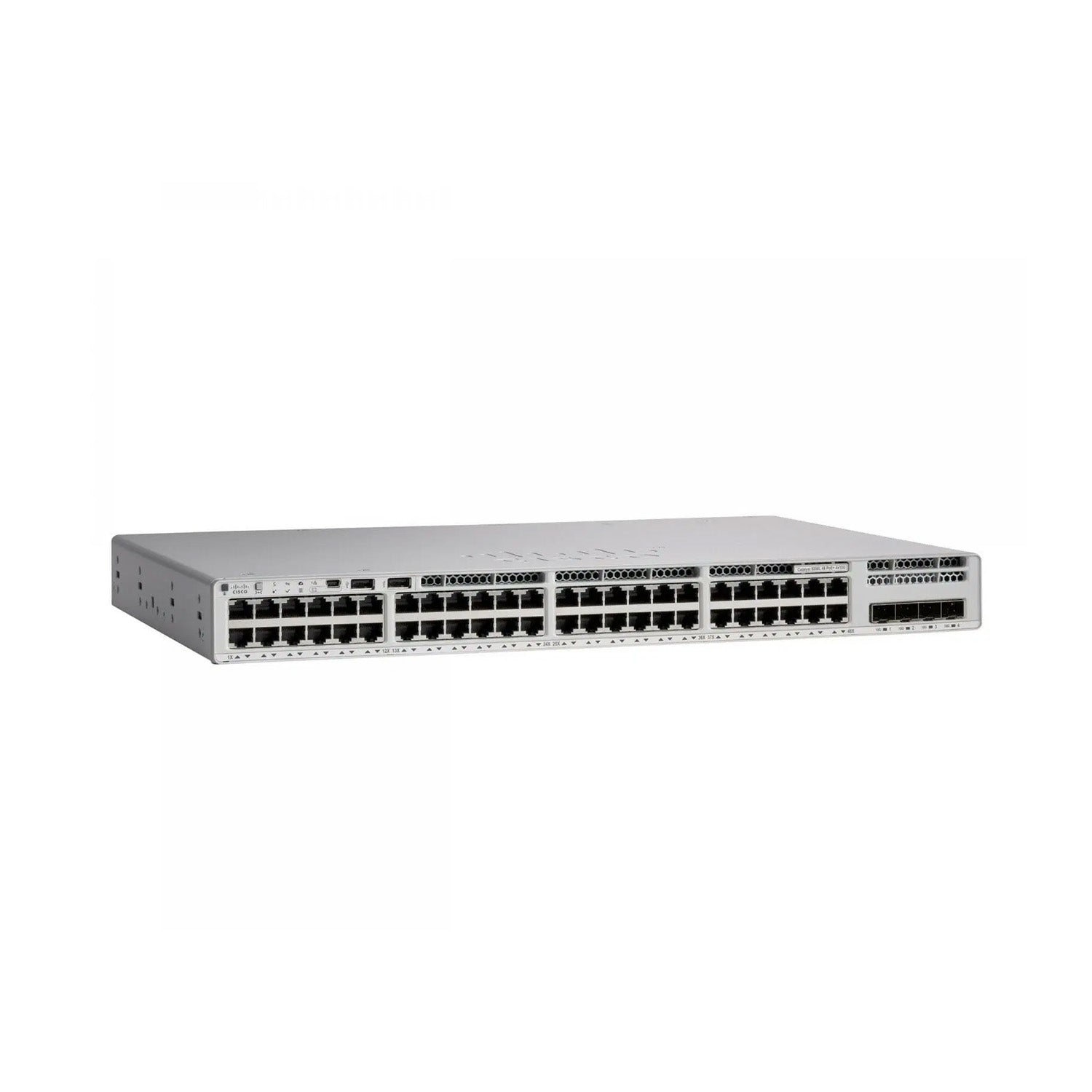

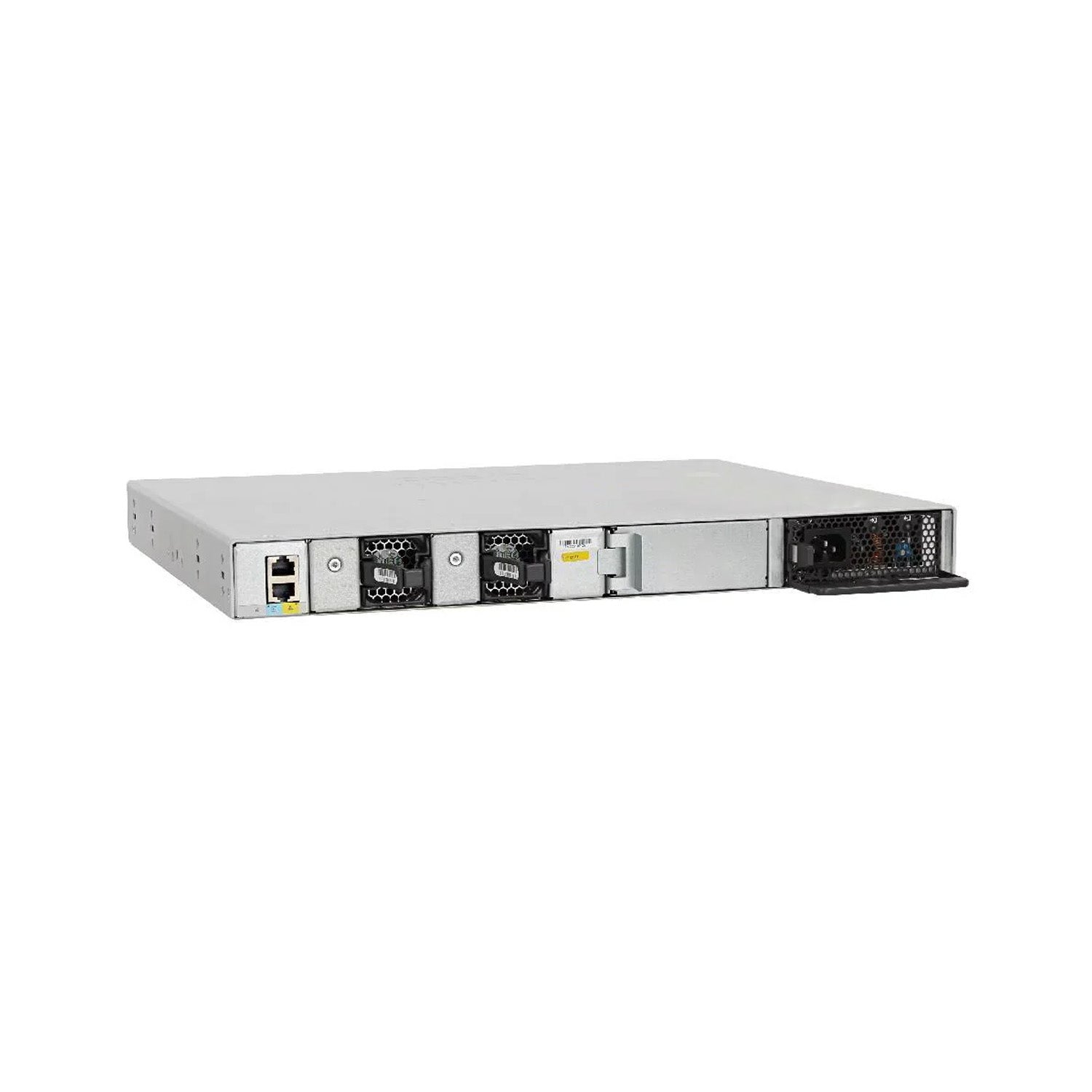

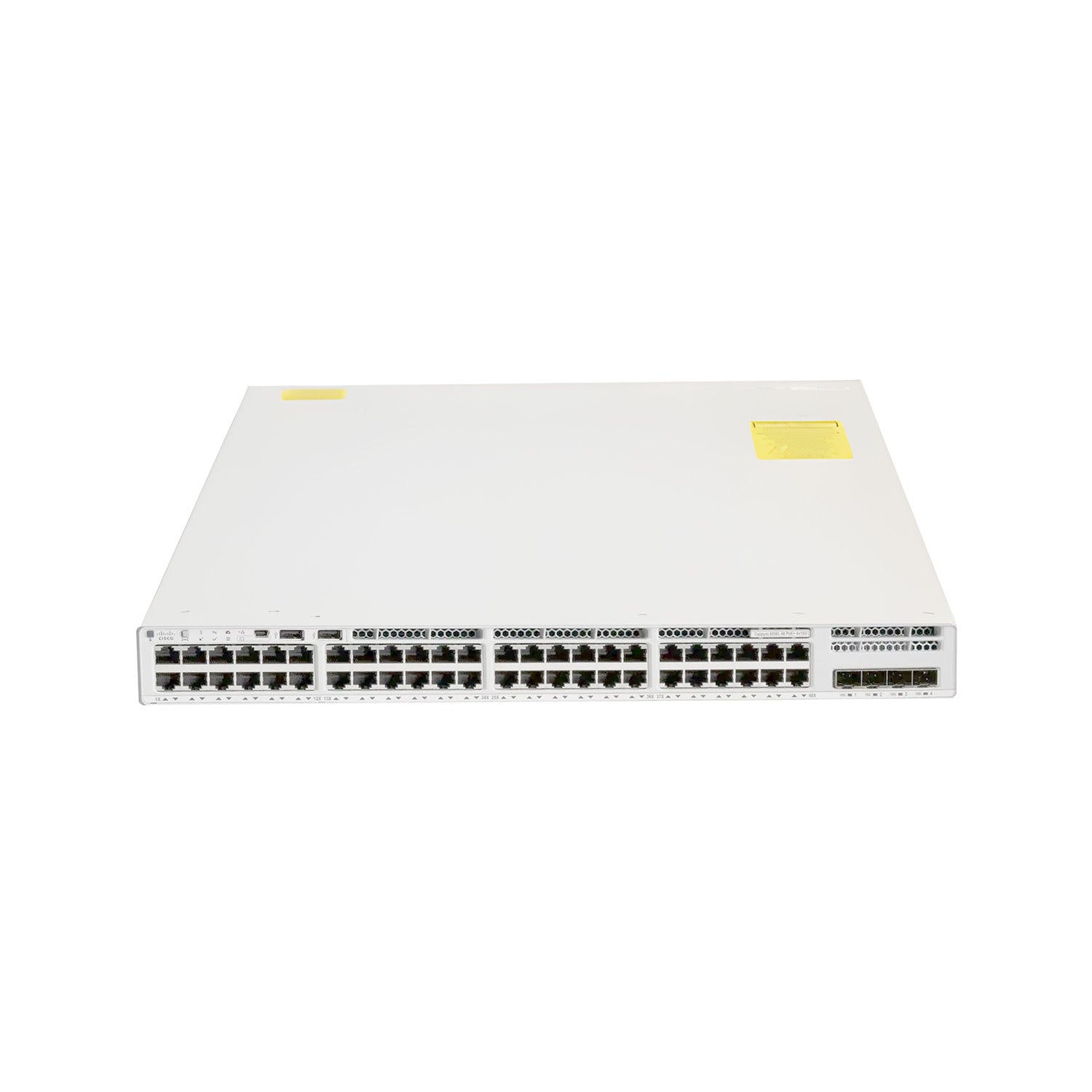

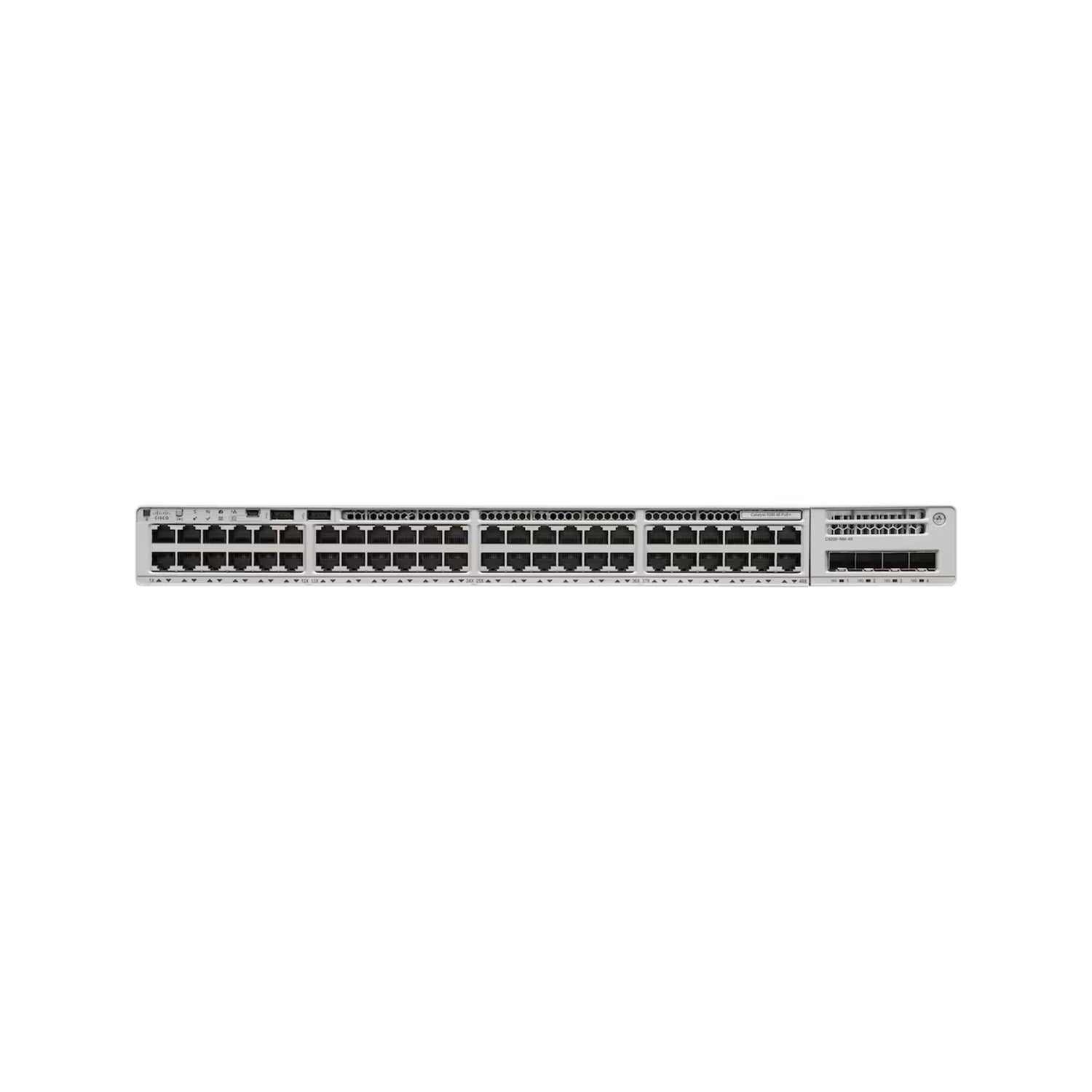

Cisco Catalyst C9200-48P High-Density PoE+ Modular Access Switch
Why choose Cisco Catalyst C9200-48P?
The Cisco Catalyst C9200-48P is a 48-port full PoE+ enterprise access switch designed for high-density campus networks, enterprise offices, smart buildings, and surveillance deployments.
It provides 48 10/100/1000 RJ-45 PoE+ ports, delivering up to 30W per port, making it ideal for powering Wi-Fi 6 / Wi-Fi 6E access points, IP cameras, VoIP phones, and IoT devices at scale.
With a modular uplink architecture, it supports 1G and 10G uplinks, enabling flexible aggregation to distribution or core layers. Combined with StackWise-160, it ensures high availability and scalability for growing enterprise environments.
Available with Network Essentials (cost-effective) and Network Advantage (advanced routing & segmentation) licenses, the C9200-48P fits both SMB deployments and large enterprise campus networks.
Overview
Built for environments requiring maximum PoE density + reliability + scalability:
Typical deployment scenarios:
-
Enterprise campus access layer
-
High-density Wi-Fi 6 / 6E AP deployments
-
IP surveillance & security camera networks
-
Corporate office floors (full VoIP deployment)
-
Smart building & IoT infrastructure
-
Retail chains and POS systems
-
Healthcare and hospital access networks
Highlights
1. 48 Full PoE+ Ports for High-Density Deployments
-
48 1G RJ-45 PoE+ ports
-
Up to 30W per port
Ideal for:
-
Full office VoIP phone rollout
-
Dense AP environments
-
Large-scale CCTV systems
2. Flexible Modular Uplinks (1G / 10G)
Supports:
-

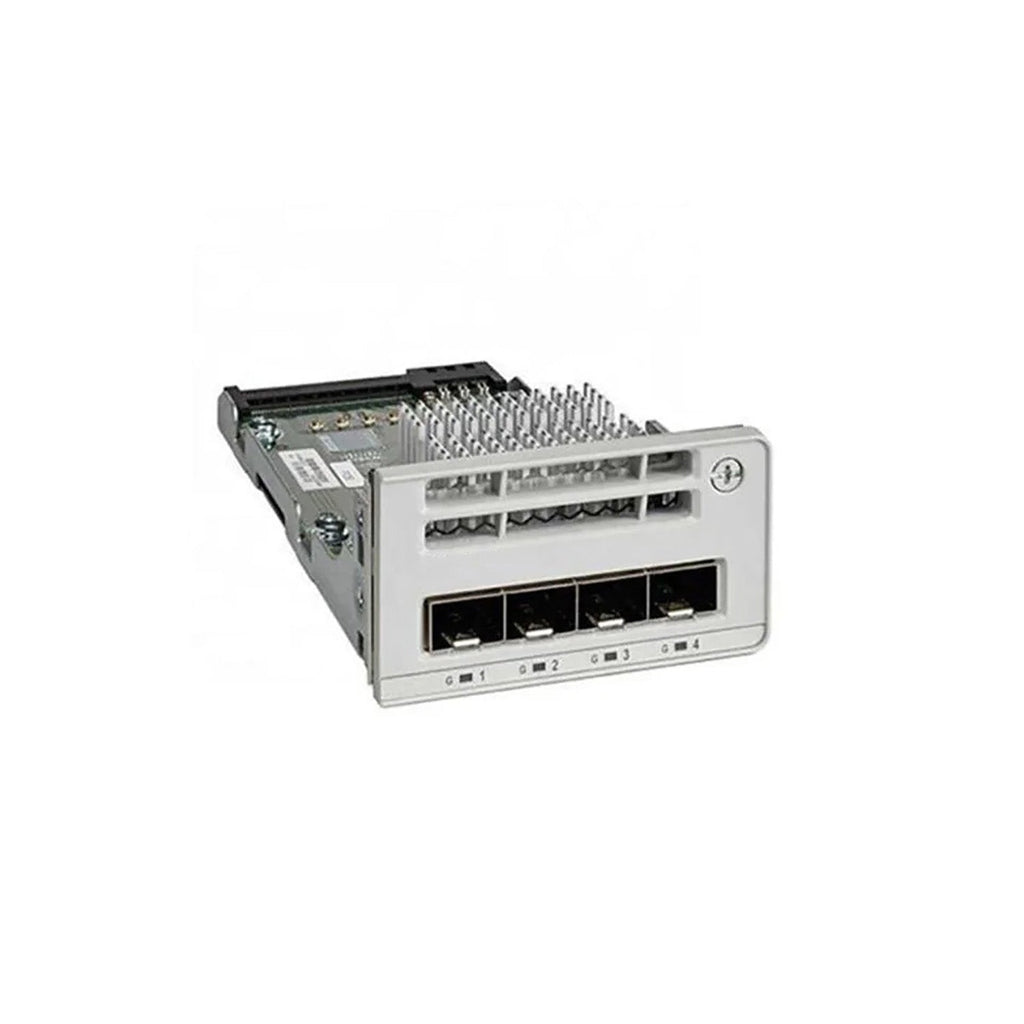

C9200-NM-4G (4 x 1G SFP)
-
C9200-NM-4X (4 x 10G SFP+)
Enables:
-
Core aggregation
-
Data center uplinks
-
Campus distribution
⚠ Note: 25G / 40G uplink modules are NOT supported on C9200 non-mGig models.
3. Scalable PoE Budget for Enterprise Deployments
-
740W out-of-the-box (default 1000W PSU)
-
Expandable to 1440W (dual 1000W PSUs)
Supports:
-
High-density Wi-Fi 6 AP environments
-
Full 48-port IP phone deployments
-
Large camera installations
4. High Performance Switching & Low Latency
-
176 Gbps switching capacity
-
130.95 Mpps forwarding rate
-
6 MB packet buffer
Benefits:
-
Smooth video streaming
-
Low-latency voice traffic
-
Handles burst traffic across all 48 ports
5. StackWise-160 High Availability
-
Up to 8 switches per stack
-
160 Gbps stacking bandwidth
-
NSF/SSO failover (<50 ms)
Ideal for:
-
Campus core access
-
Redundant enterprise networks
6. Enterprise Hardware Design (FRU)
-
Field-replaceable fans (FRU)
-
Hot-swappable power supplies
Compared to C9200L:
-
Higher resilience
-
Easier maintenance
-
Reduced downtime
-
Layer 2 + basic Layer 3
-
Static routing + OSPF (up to 1000 routes)
-
Ideal for SMB / branch
8. Network Advantage
-
Advanced routing (EIGRP, IS-IS, full OSPF)
-
VRF / VXLAN / LISP / SGT segmentation
-
SD-Access support
⚠ Note: BGP routing is NOT supported on standard C9200 models.
9. Enterprise-Grade Security
-
AES-128 MACsec encryption
-
802.1X authentication
-
DHCP Snooping / DAI / IP Source Guard
-
Secure Boot + Trust Anchor
Protects:
-
Enterprise LAN
-
Retail payment systems
-
IoT environments
10. Cisco E-LLW Warranty
-
Next-Business-Day hardware replacement
-
90-day Cisco TAC support
Enterprise lifecycle assurance
Recommended Accessories
| Product Type | Model | Description | Use Case |
|---|---|---|---|
| Network Module | C9200-NM-4G | 41G SFP module | Standard uplink |
| Network Module | C9200-NM-4X | 41/10G SFP+ module | 10G aggregation |
| Power Supply | PWR-C6-1KWAC | 1000W AC PSU | Default (740W PoE) |
| Power Supply | PWR-C6-1KWAC (Secondary) | Redundant PSU | 1440W PoE |
| Fan | FAN-T2= | FRU fan tray | Hot-swap cooling |
| Stacking | C9200-STACK-KIT= | StackWise-160 kit | 160 Gbps stacking |
Comparison with Similar Models
| Feature | C9200-48P | C9200-24P | C9200L-48P-4G |
|---|---|---|---|
| Ports | 48 PoE+ | 24 PoE+ | 48 PoE+ |
| Switching Capacity | 176 Gbps | 128 Gbps | Lower |
| PoE Budget | 740W / 1440W | 370W / 740W | Lower |
| Uplink | Modular | Modular | Fixed |
| Stacking | 160 Gbps | 160 Gbps | 80 Gbps |
| Fans | FRU | FRU | Fixed |
| Virtual Networks | 4 (Advantage) | 4 (Advantage) | 1 only |
| Best Use | High-density enterprise | Medium access | Budget |
Specifications
| Parameter | Specification Value | Technical Value / Use Case |
|---|---|---|
| Model | C9200-48P | High-density access switch |
| Ports | 48 10/100/1000 PoE+ | Endpoint connectivity |
| Uplink | Modular (4G / 4X) | Flexible expansion |
| Switching Capacity | 176 Gbps | High throughput |
| Forwarding Rate | 130.95 Mpps | Wire-speed performance |
| Packet Buffer | 6 MB | Burst traffic handling |
| PoE Budget | 740W / 1440W | Enterprise power scaling |
| Power Supply | PWR-C6-1KWAC | Default 1000W PSU |
| Stacking | 160 Gbps | Scalable architecture |
| DRAM / Flash | 4 GB / 4 GB | Stable operation |
| MAC Table | 32,000 | Large network scale |
| IPv4 Routes | 14,000 (10K direct + 4K indirect) | Routing capability |
| IPv6 Routes | 2,000 | Future-ready |
| OSPF Routes | Up to 1000 (Essentials) | License limitation |
| Virtual Networks | Essentials: Not supported | Requires Advantage |
| Fans | FRU redundant | Hot-swappable |
| Dimensions | 1.7317.513.8 | Rack mount |
| Weight | 12.12 lb (5.5 kg) | Deployment planning |
| MTBF | 375,570 hours | High reliability |
| Operating Temp | -5°C to 45°C | Enterprise environment |
