Description
Overview

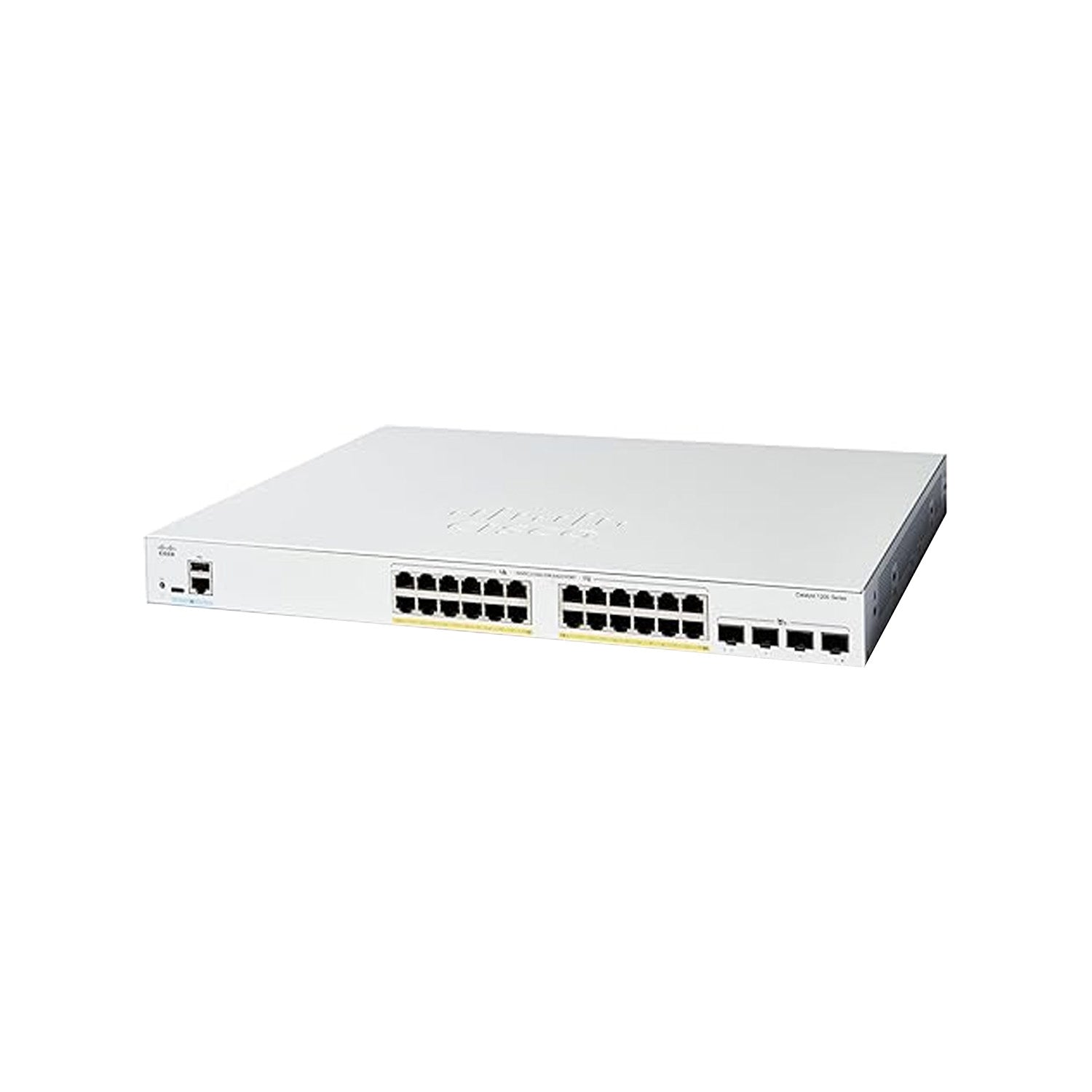

The cisco c1200 24fp 4x is the top-tier, full-power Layer 2+ smart-managed Gigabit switch in the Catalyst 1200 Series. It is purpose-built for small-to-medium businesses (SMBs), corporate branch offices, and campus edges that demand non-blocking 10G uplink performance and high-capacity inline power infrastructure.
As the most powerful 24-port variant in this portfolio, the cisco catalyst 1200 48p 4x sister line architecture is matched here by the modular intelligence of the c1200-24fp-4x. This high-performance 24 port poe switch integrates 24 full Power over Ethernet Plus (PoE+) Gigabit downlinks with a robust 370W total PoE budget and 4 dedicated 10 GbE SFP+ uplinks. It acts as an ideal 10g uplink switch engine for high-density wireless access points, IP camera surveillance matrices, and real-time VoIP networks requiring flawless backbone aggregation inside a silent, fanless 1U rackmount chassis.
-
Related Reading & Architecture Resource Guides:
-
Navigating the midmarket switch landscape? Check out our specialized guide: Cisco Small Business Switches Buyers Guide.
-
Staging an access tier upgrade for your corporate space? Review our breakdown: How to Choose the Best Gigabit Switch for SMBs.
-
📥 Download Technical Specifications: Staging a clean, future-ready business network deployment? Enter your corporate work email below to download the official datasheet to verify exact forwarding thresholds, MAC address table limits, and frame parameters.
Highlights
-
Full 24-Port High-Power PoE+ Delivery: Features 24 auto-sensing 10/100/1000 RJ-45 ports running full IEEE 802.3at PoE+ parameters (up to 30W per port). This robust 24 port poe switch framework safely distributes a total 370W inline power pool to effortlessly energize high-throughput Wi-Fi 6/6E wireless fleets. For precise power budget mapping, explore our technical resource: Cisco AP Deployment & PoE Budget Guide.
-
Native 10 Gigabit Uplink SFP+ Bandwidth: Equipped with 4 integrated 10 GbE SFP+ uplink slots, this flexible 10g uplink switch architecture guarantees non-blocking, wire-speed aggregation straight to your core server racks or data center aggregates, completely eliminating upstream bottlenecks.
-
Fiber Backbone Aggregation Ready: While providing dense copper access ports, its 4 high-speed 10G SFP+ line slots allow the switch to tie directly into high-capacity multi-mode or single-mode fiber networks, eliminating the need for a separate, standalone 24 port fiber switch to handle mid-market aggregation nodes.
-
Layer 2+ Static Routing Intelligence: Natively handles Inter-VLAN routing directly at the access edge. Securely route traffic between different subnets and optimize local network segmentation without paying a premium for complex enterprise license renewals.
-
Silent Fanless operation: Engineered with an advanced fanless thermal design and an efficient internal power supply, the cisco c1200 24fp 4x ensures completely quiet performance-ideal for open office workspaces, school classrooms, or retail spaces.
-
Intuitive Setup and Smart Management Operations: Configure, manage, and monitor your entire network layout via the intuitive on-device graphical Web UI, the Cisco Business Mobile App, or the centralized Cisco Business Dashboard life cycle management platform.
Recommended Accessories
To configure your high-speed c1200-24fp-4x deployment effectively, pair your hardware platform with original Cisco components and verified transceiver options.
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets compatible with Catalyst 1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for configuration and setup |
| SFP-10G-SR / SFP-10G-LR / GLC-T | SFP/SFP+ Modules | 1G/10G optical and copper transceivers for uplinks. To verify your optics specs, view our 10G SFP Transceivers Buying Guide. |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-24P-4G | 24 × 1 GbE PoE+ + 4 × 1 GbE SFP | 195 W | Fanless | Internal | Entry PoE+ model for SMB access |
| C1200-24FP-4G | 24 × 1 GbE PoE+ + 4 × 1 GbE SFP | 370 W | Fanless | Internal | High-power PoE+ 1G uplink switch |
| C1200-24P-4X | 24 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 195 W | Fanless | Internal | PoE+ switch with 10G uplinks |
| C1200-24FP-4X (this model) | 24 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 370 W | Fanless | Internal | Full-power PoE+ switch with 10G uplinks for performance-critical networks |
| C1200-48FP-4X | 48 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 740 W | Fanless | Internal | Enterprise-grade high-density PoE+ model |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-24FP-4X |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch with 10G uplinks |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 4 × 10 GbE SFP+ uplinks |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 8,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 370 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 24 W (no PoE load), up to 410 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,800,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 268 × 269 × 43 mm (10.6 × 10.6 × 1.7 in) |
| Weight | 2.38 kg (5.25 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
