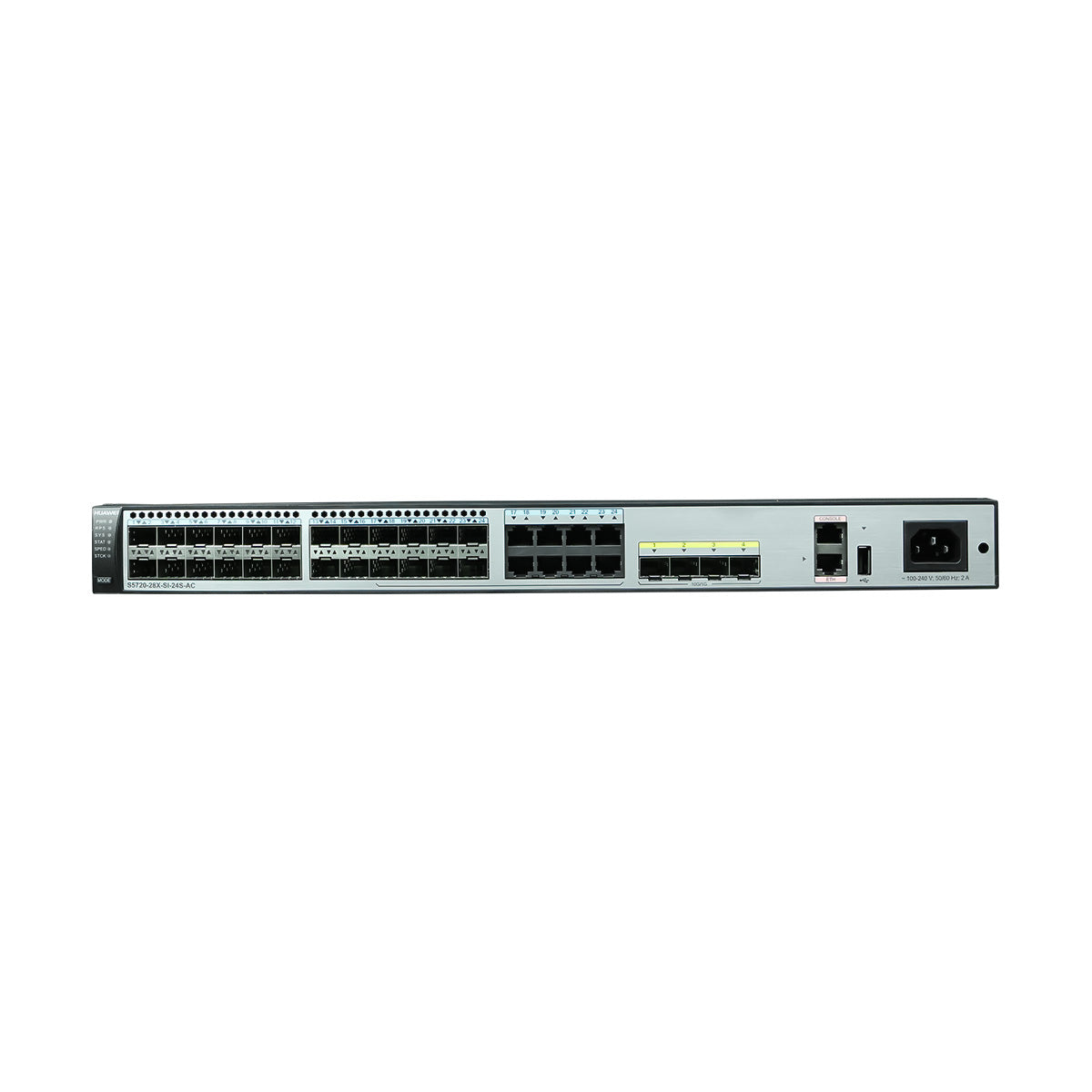

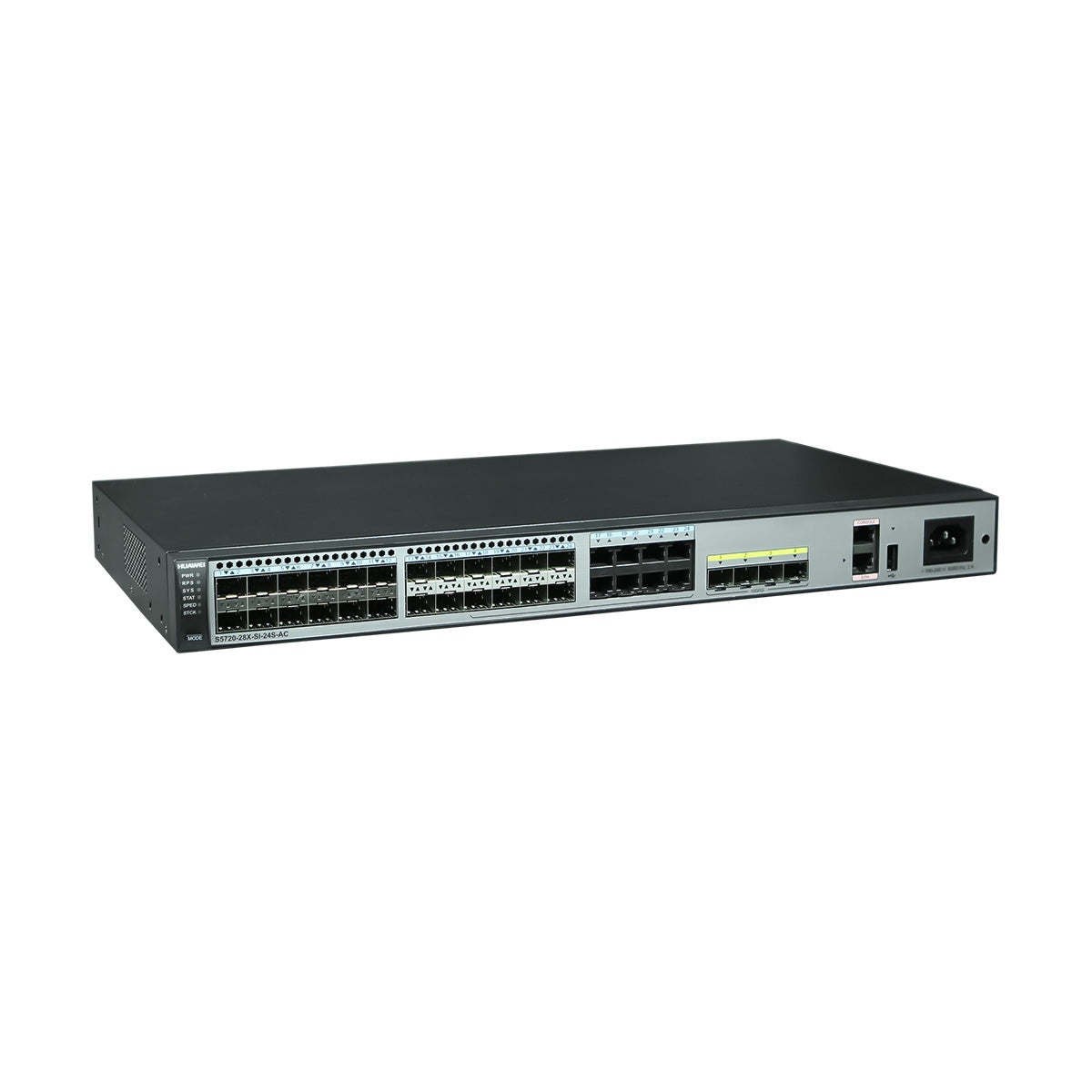

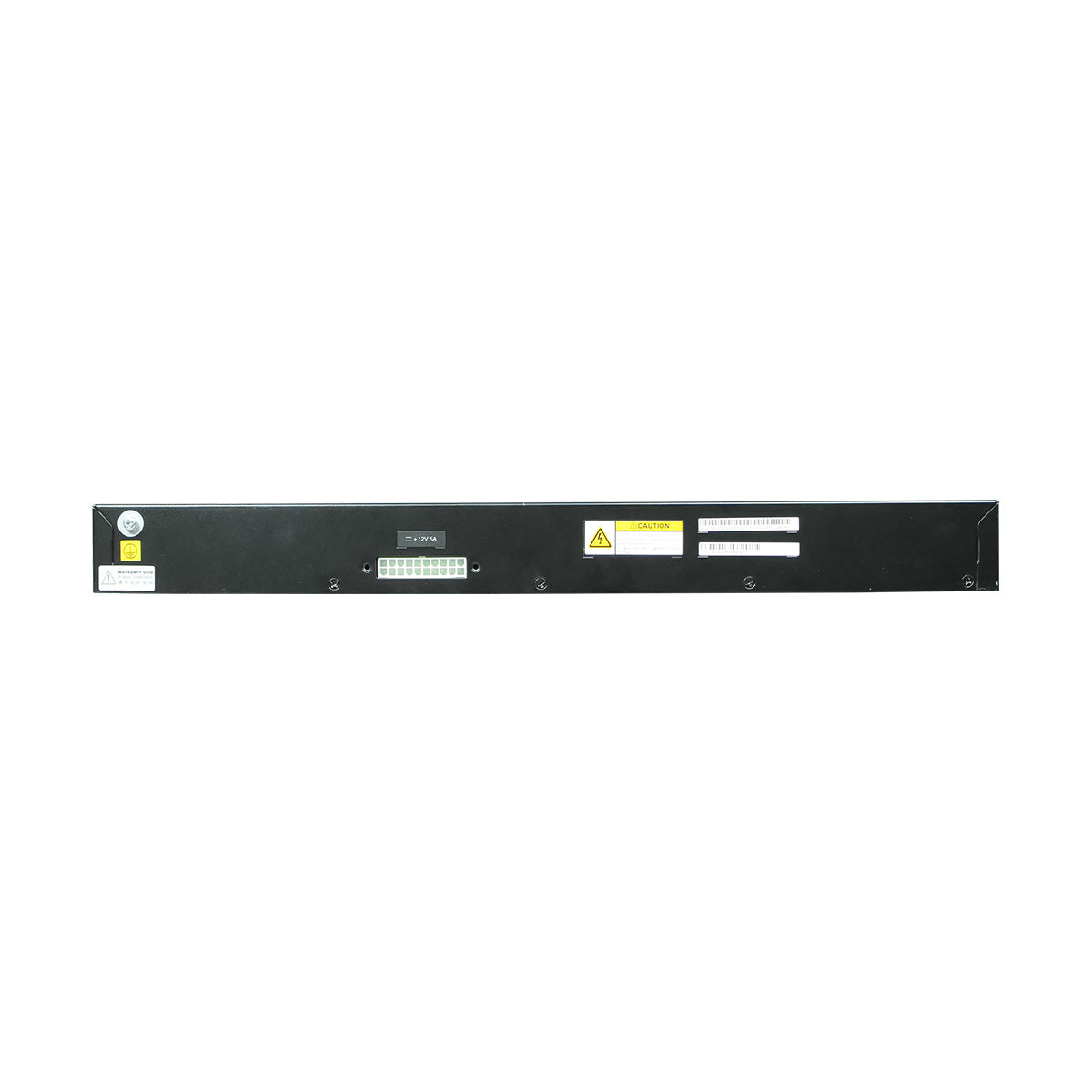

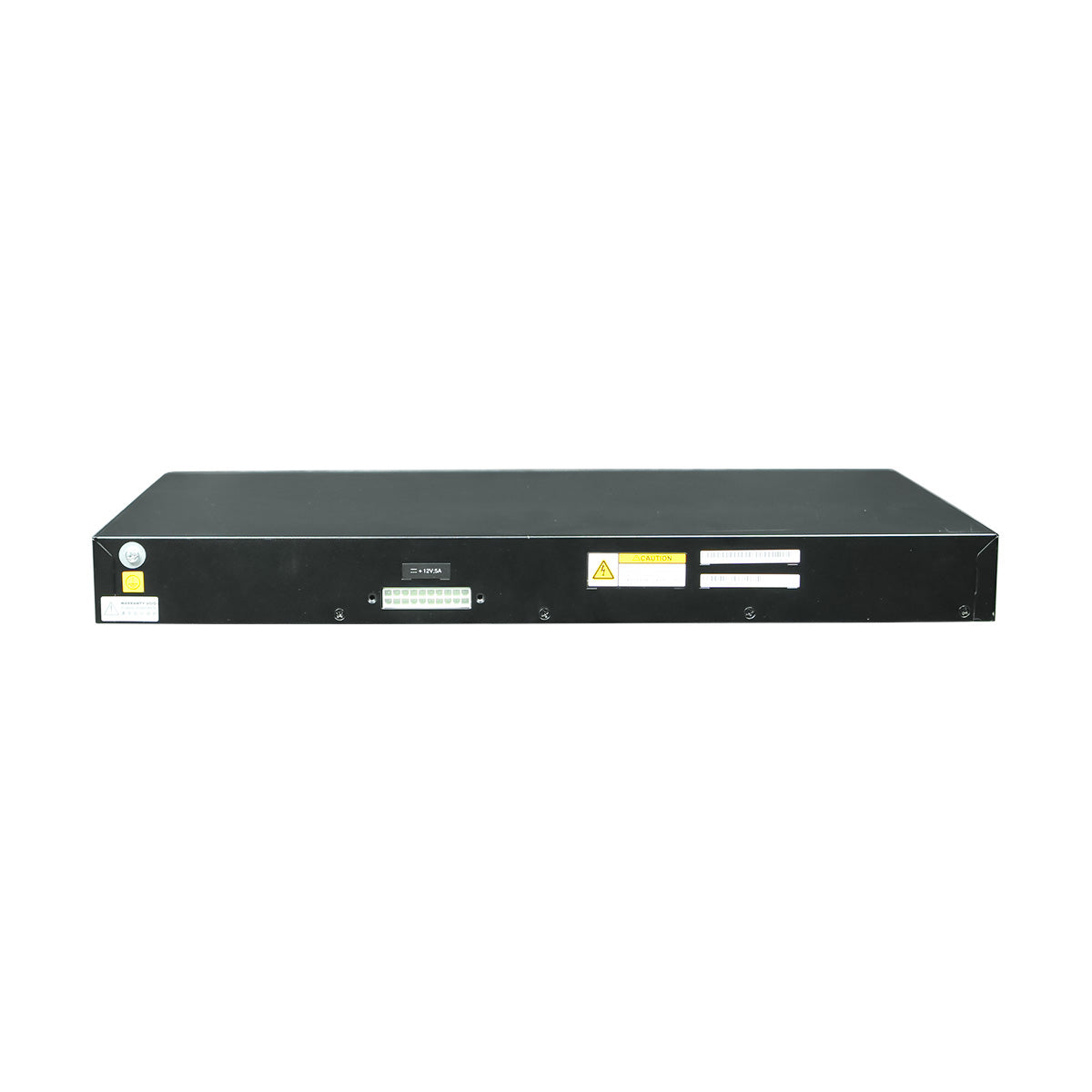

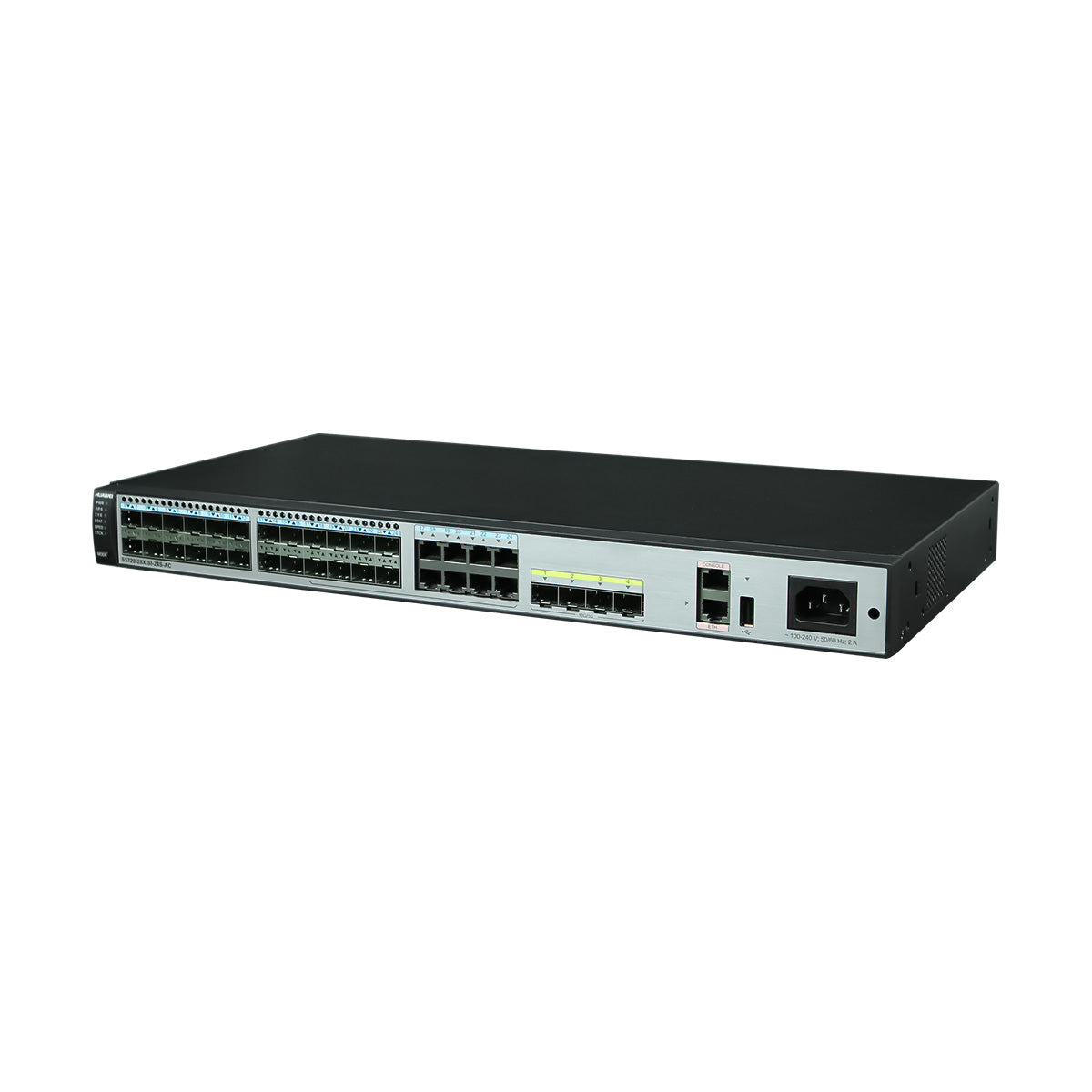

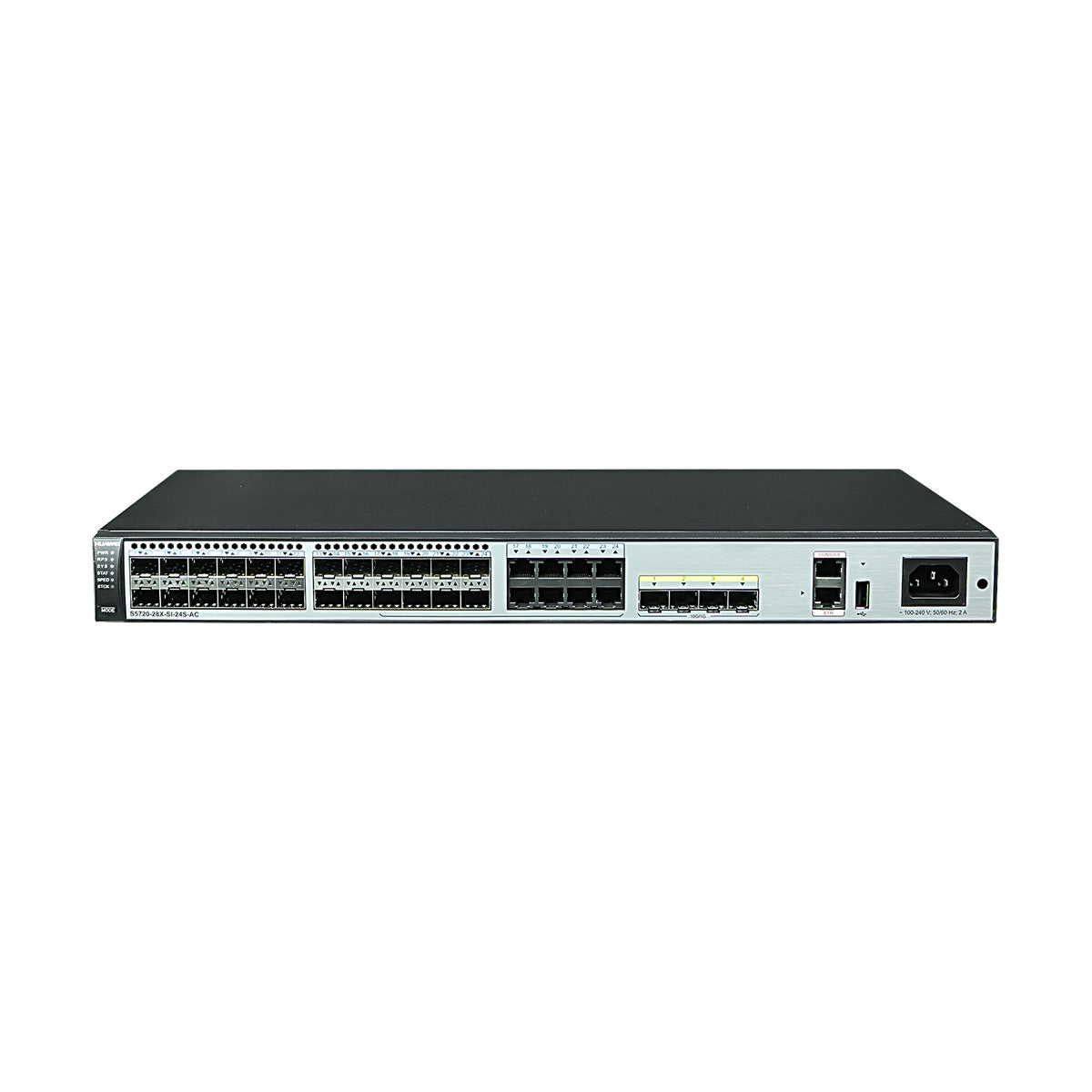

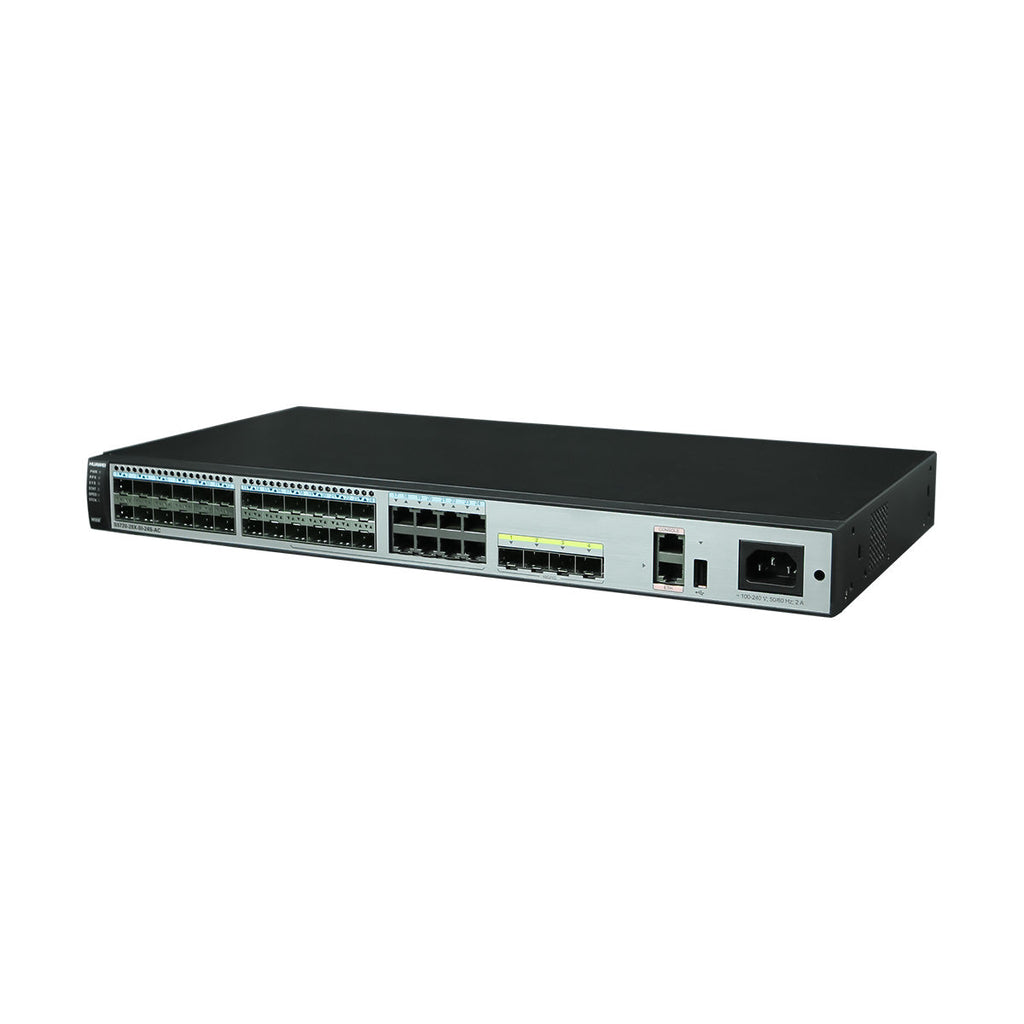

Huawei S5720-28X-SI-24S-AC Layer 3 Gigabit Ethernet Switch
The Huawei S5720-28X-SI-24S-AC is a high-performance Layer 3 Gigabit Ethernet switch designed for enterprise campus networks and data centers. It offers 24 Gigabit SFP ports, including 8 dual-purpose 10/100/1000BASE-T or SFP ports, and 4 10 Gigabit SFP+ uplink ports, providing flexible deployment options.
With a switching capacity of 336 Gbps and a forwarding rate of 96 Mpps, this switch ensures efficient data handling. It supports advanced features such as IPv6, comprehensive security mechanisms, and intelligent stacking (iStack), making it a versatile solution for various networking needs.
Overview
Highlights
-
Flexible Port Configuration: 24 Gigabit SFP ports (8 dual-purpose 10/100/1000BASE-T or SFP) and 4 10 Gigabit SFP+ uplink ports.
-
High Performance: 336 Gbps switching capacity and 96 Mpps forwarding rate ensure efficient data processing.
-
Advanced Layer 3 Features: Supports static routing, RIP, OSPF, IS-IS, BGP, and VRRP for robust network routing capabilities.
-
Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, ARP inspection, and port isolation.
-
Intelligent Stacking (iStack): Supports stacking of up to 9 switches, simplifying network management and enhancing scalability.
-
Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.
-
Redundant Power Supplies: Equipped with dual hot-swappable AC/DC power supplies for enhanced reliability.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| SFP-GE-SX-MM850 | SFP Transceiver | 1000BASE-SX SFP, 850nm, multimode fiber, up to 550m |
| SFP-GE-LX-SM1310 | SFP Transceiver | 1000BASE-LX SFP, 1310nm, single-mode fiber, up to 10km |
| SFP-GE-LH40-SM1310 | SFP Transceiver | 1000BASE-LH SFP, 1310nm, single-mode fiber, up to 40km |
| SFP-GE-ZX50-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 50km |
| SFP-GE-ZX80-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 80km |
| SFP-GE-ZX100-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 100km |
| SFP-GE-LX20-SM1310-BIDI | SFP Transceiver | 1000BASE-LX BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 20km |
| SFP-GE-LX20-SM1550-BIDI | SFP Transceiver | 1000BASE-LX BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 20km |
| SFP-GE-LH40-SM1310-BIDI | SFP Transceiver | 1000BASE-LH BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 40km |
| SFP-GE-LH40-SM1550-BIDI | SFP Transceiver | 1000BASE-LH BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 40km |
Comparison with Similar Items
| Feature | S5720-28X-SI-24S-AC | S5720-28X-SI-AC | S5720-28X-PWR-SI-AC |
|---|---|---|---|
| Downlink Ports | 24 × GE SFP (8 combo) | 24 × GE RJ45 | 24 × GE RJ45 (PoE+) |
| Uplink Ports | 4 × 10GE SFP+ | 4 × 10GE SFP+ | 4 × 10GE SFP+ |
| Switching Capacity | 336 Gbps | 336 Gbps | 336 Gbps |
| Forwarding Rate | 96 Mpps | 96 Mpps | 96 Mpps |
| PoE Support | No | No | Yes |
| Power Supply | Dual AC/DC | Dual AC/DC | Dual AC/DC |
| Ideal Use Case | Fiber aggregation | Copper aggregation | PoE deployments |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5720-28X-SI-24S-AC |
| Downlink Ports | 24 × 100/1000BASE-X SFP ports (8 combo 10/100/1000BASE-T or SFP) |
| Uplink Ports | 4 × 10GE SFP+ ports |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address Table | 16K entries |
| VLANs | Supports up to 4,000 VLANs (IEEE 802.1Q) |
| QoS | 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms |
| IPv6 Features | IPv6 host, static routes, OSPFv3, BGP4+, IS-ISv6 |
| Security Features | 802.1X, MAC filtering, DHCP snooping, ARP inspection, port isolation |
| Management | Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2 |
| Power Supply | Dual hot-swappable AC/DC power supplies |
| Power Consumption | Typical: 47.9 W |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions (W×D×H) | 442 mm × 420 mm × 43.6 mm (17.4 in. × 16.5 in. × 1.7 in.) |
| Weight | ≤ 6.5 kg (14.3 lbs) |
| Warranty | Limited lifetime warranty |
