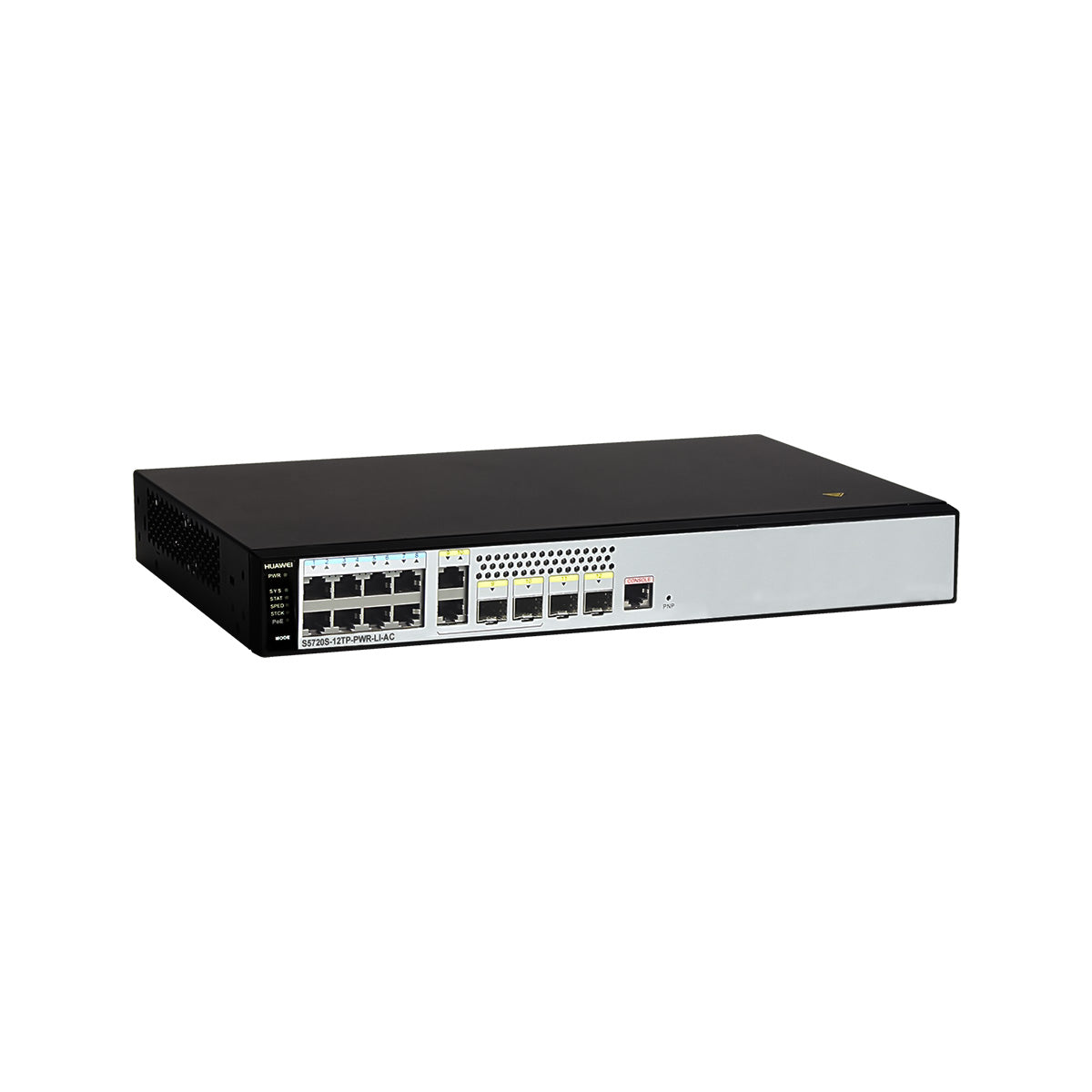

Huawei S5720-12TP-LI-AC Layer 2+ Gigabit Ethernet Switches
The Huawei S5720-12TP-LI-AC is a Layer 2+ Gigabit Ethernet switch designed for small to medium-sized enterprise networks. It features 8 10/100/1000BASE-T ports, 4 Gigabit SFP ports (including 2 dual-purpose combo ports), providing flexible deployment options.
With a switching capacity of 336 Gbps and a forwarding rate of 22.5 Mpps, this fanless switch ensures efficient performance with low power consumption. Its comprehensive security features, QoS capabilities, and IPv6 support make it a versatile solution for various networking needs.
Overview
Highlights
-
Flexible Port Configuration: 8 10/100/1000BASE-T ports and 4 Gigabit SFP ports, including 2 combo ports.
-
High Performance: 336 Gbps switching capacity and 22.5 Mpps forwarding rate ensure efficient data handling.
-
Fanless Design: Natural heat dissipation for silent operation and reduced power consumption.
-
Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, and port isolation.
-
Advanced QoS: Supports traffic classification, rate limiting, and multiple queue scheduling algorithms.
-
IPv6 Support: Includes IPv6 host, static routes, and MLD snooping for future-proof networking.
-
Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| SFP-GE-SX-MM850 | SFP Transceiver | 1000BASE-SX SFP, 850nm, multimode fiber, up to 550m |
| SFP-GE-LX-SM1310 | SFP Transceiver | 1000BASE-LX SFP, 1310nm, single-mode fiber, up to 10km |
| SFP-GE-LH40-SM1310 | SFP Transceiver | 1000BASE-LH SFP, 1310nm, single-mode fiber, up to 40km |
| SFP-GE-ZX50-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 50km |
| SFP-GE-ZX80-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 80km |
| SFP-GE-ZX100-SM1550 | SFP Transceiver | 1000BASE-ZX SFP, 1550nm, single-mode fiber, up to 100km |
| SFP-GE-LX20-SM1310-BIDI | SFP Transceiver | 1000BASE-LX BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 20km |
| SFP-GE-LX20-SM1550-BIDI | SFP Transceiver | 1000BASE-LX BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 20km |
| SFP-GE-LH40-SM1310-BIDI | SFP Transceiver | 1000BASE-LH BiDi SFP, TX1310/RX1550nm, single-mode fiber, up to 40km |
| SFP-GE-LH40-SM1550-BIDI | SFP Transceiver | 1000BASE-LH BiDi SFP, TX1550/RX1310nm, single-mode fiber, up to 40km |
Comparison with Similar Items
| Feature | S5720-12TP-LI-AC | S5720S-12TP-PWR-LI-AC | S5720-28TP-LI-AC |
|---|---|---|---|
| Downlink Ports | 8 × GE | 8 × GE PoE+ | 24 × GE |
| Uplink Ports | 4 × GE SFP (2 combo) | 4 × GE SFP (2 combo) | 4 × GE SFP (2 combo) |
| PoE Support | No | Yes (124W budget) | No |
| Switching Capacity | 336 Gbps | 336 Gbps | 336 Gbps |
| Forwarding Rate | 22.5 Mpps | 22.5 Mpps | 46.5 Mpps |
| Management | Web, CLI, SNMP | Web, CLI, SNMP | Web, CLI, SNMP |
| Ideal Use Case | Small networks | Small PoE deployments | Medium networks |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5720-12TP-LI-AC |
| Downlink Ports | 8 × 10/100/1000BASE-T ports |
| Uplink Ports | 4 × Gigabit SFP ports (2 combo) |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 22.5 Mpps |
| MAC Address Table | 16K entries |
| VLANs | Supports up to 4,000 VLANs (IEEE 802.1Q) |
| QoS | 4 or 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms |
| IPv6 Features | IPv6 host, static routes, MLD v1/v2 snooping |
| Security Features | 802.1X, MAC filtering, DHCP snooping, port isolation, storm control |
| Management | Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2 |
| Power Supply | AC 100–240V, 50/60 Hz |
| Power Consumption | Typical: 10.39 W; Maximum: 12.85 W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions (W×D×H) | 250 mm × 180 mm × 43.6 mm (9.84 in. × 7.09 in. × 1.72 in.) |
| Weight | ≤ 1.8 kg (3.97 lbs) |
| Warranty | Limited lifetime warranty |
