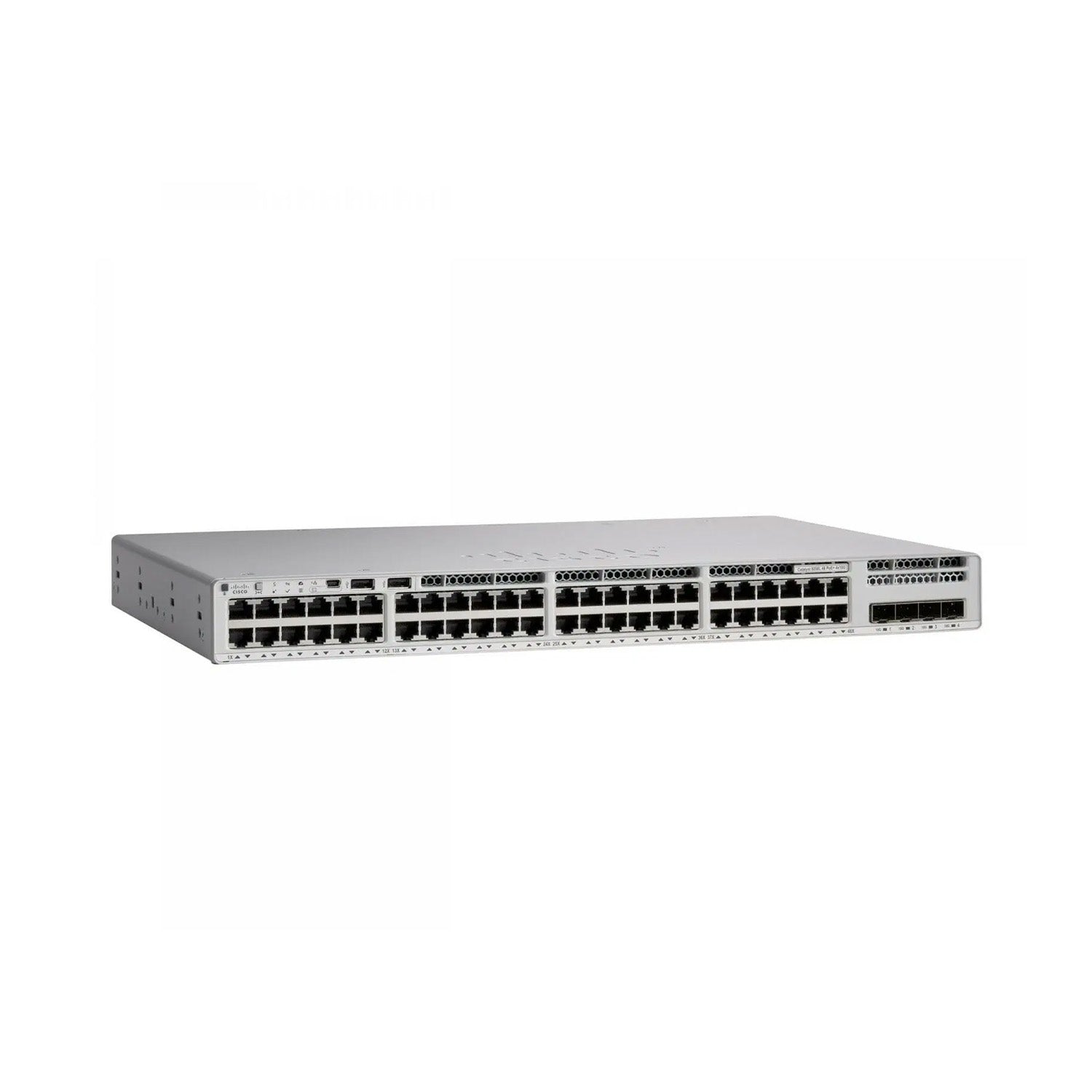

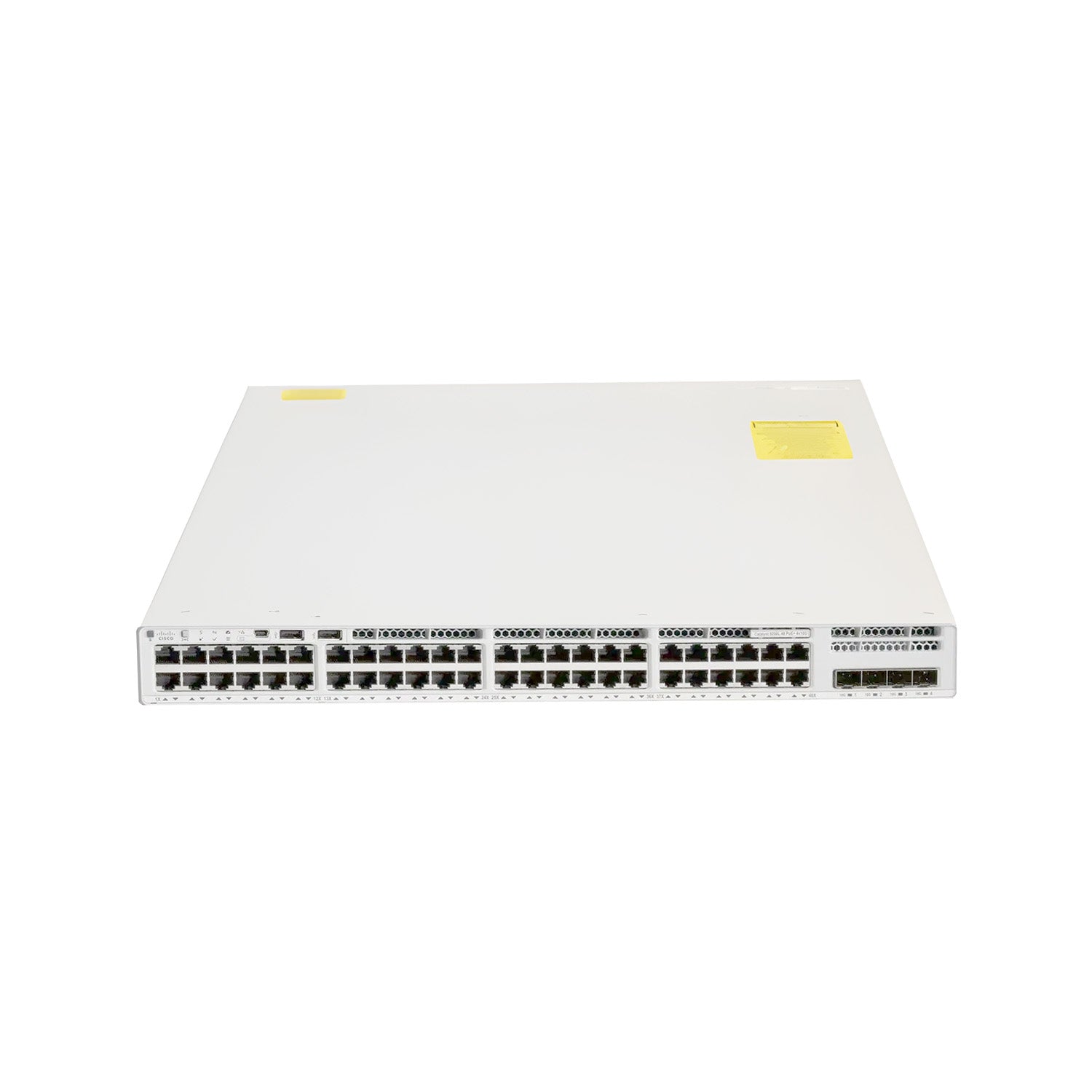

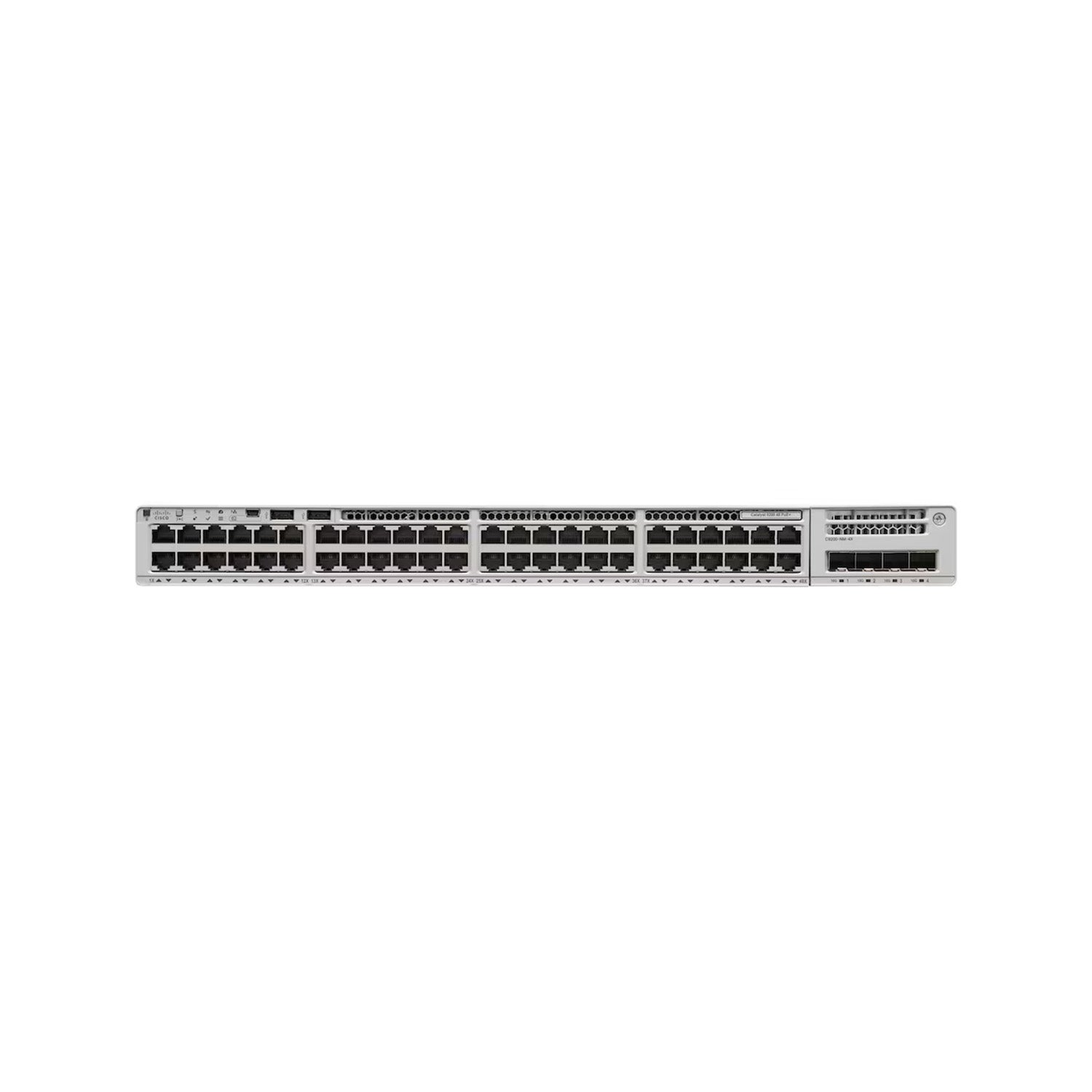

Cisco Catalyst C9200L-48T-4G | 48-Port Gigabit Data Switch
Overview
The Cisco Catalyst C9200L-48T-4G is a fixed-configuration Layer 3 access switch designed for high-density, data-only environments such as corporate offices, call centers, financial trading floors, education labs, and engineering networks where PoE is not required.
It provides 48 Gigabit Ethernet data ports and 41G SFP uplinks, delivering stable and scalable connectivity for desktops, servers, and enterprise endpoints, while significantly reducing power consumption, heat output, and noise levels compared to PoE-based switches.
Built on the UADP 2.0 Mini ASIC, the switch delivers 104 Gbps switching capacity and 77.38 Mpps forwarding performance, ensuring smooth traffic handling for business-critical applications, internal systems, and high-density wired workloads.
Running Cisco IOS XE, it supports StackWise-80 (80 Gbps) for scalable deployments and flexible Layer 3 routing:
-
Network Essentials: OSPF (up to 1000 routes), EIGRP Stub, RIP, static routing
-
Network Advantage: Full OSPF, EIGRP, IS-IS, plus advanced segmentation (VRF, VXLAN, LISP, SGT)
Note: BGP is not supported on C9200L series switches.
Highlights
-
48 Gigabit RJ-45 data-only ports (no PoE, optimized for wired endpoints)
-

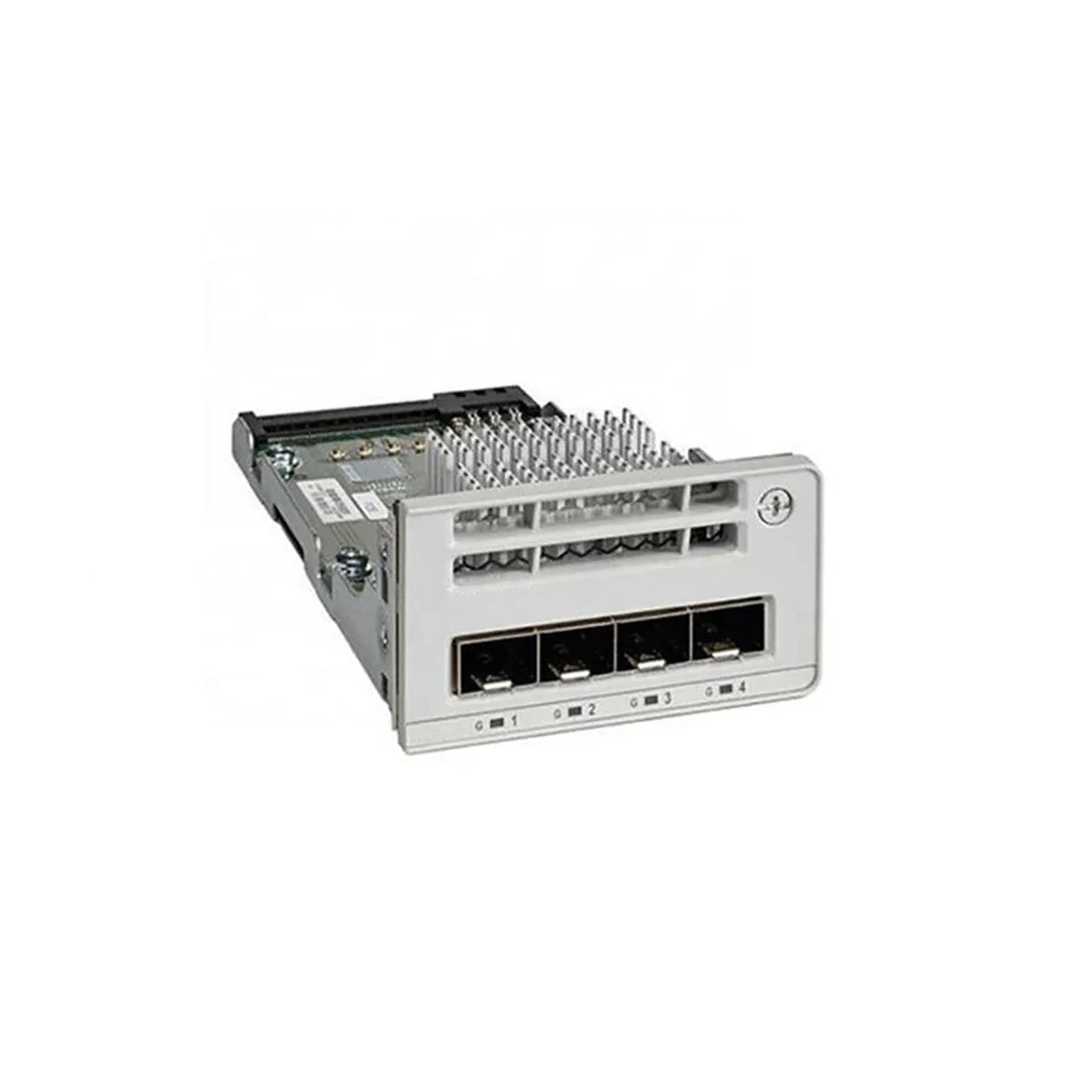

4 1G SFP uplinks for aggregation and WAN connectivity
-
104 Gbps switching capacity, 77.38 Mpps forwarding rate
-
StackWise-80 (80 Gbps) for scalable multi-switch deployment
-
UADP 2.0 Mini ASIC with programmable forwarding pipeline
-
Advanced Layer 3 routing (OSPF, EIGRP Stub / full L3 with Advantage)
-
AES-128 MACsec encryption + Trust Anchor security
-

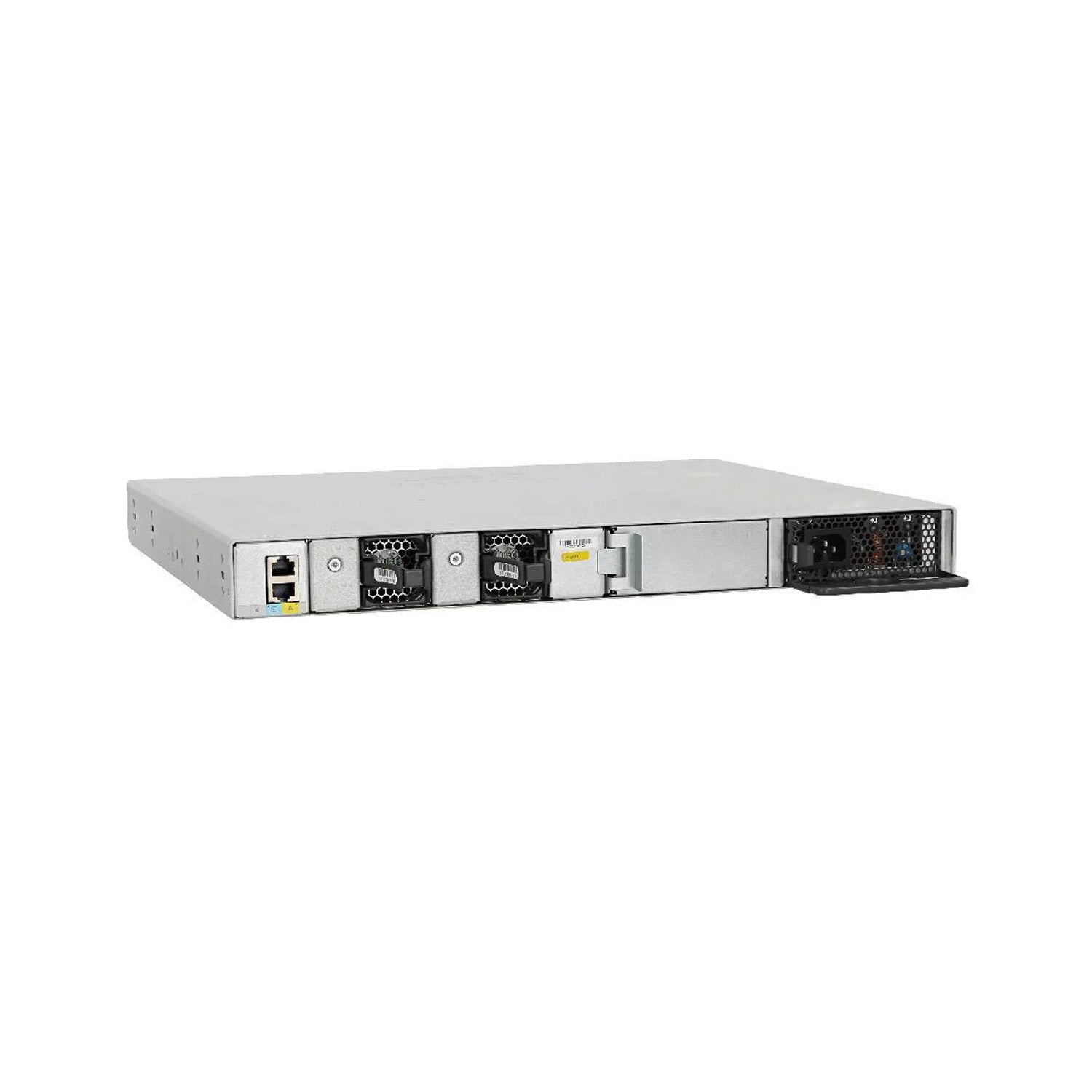

Low-power 125W PSU (PWR-C5-125WAC) for energy-efficient operation
-
Optimized for quiet office environments and compact wiring closets
Use Cases & Deployment Scenarios
-
Corporate Offices - high-density desktop connectivity
-
Call Centers - stable wired infrastructure for voice/data systems
-
Financial Trading Floors - low-latency, high-availability networking
-
R&D Labs / Engineering Networks - secure, data-only environments
-
Education Labs / Computer Rooms - cost-efficient wired access
-
Branch Offices (Non-PoE) - standardized deployments
-
System Integrators & Resellers - ideal for bulk inventory and fast delivery projects
Recommended Accessories
| Model | Description | Use Case |
|---|---|---|
| PWR-C5-125WAC | 125W AC PSU (default) | Standard deployment |
| PWR-C5-125WAC (Secondary) | Redundant PSU | 1+1 power redundancy |
| C9200L-STACK-KIT | Stack kit | Enable StackWise-80 |
| STACK-T4-1M | Stacking cable | Switch stacking |
| GLC-SX-MMD | 1G SFP | Short-distance fiber |
| GLC-LH-SMD | 1G SFP | Long-distance uplink |
Comparison with Similar Models
| Model | Uplinks | PoE | Performance | License | Best For |
|---|---|---|---|---|---|
| C9200L-48T-4G | 41G | None | 104 Gbps / 77.38 Mpps | Essentials / Advantage | Offices, labs, data-only |
| C9200L-48P-4G | 41G | 740W | Same hardware | Essentials / Advantage | Wi-Fi, cameras, PoE devices |
| C9200L-48T-4X | 410G | None | Higher uplink bandwidth | Essentials / Advantage | High-bandwidth aggregation |
Specifications
| Parameter | Specification | Value |
|---|---|---|
| Ports | 48 x 10/100/1000 RJ-45 | Data-only access |
| Uplinks | 4 x 1G SFP | Aggregation |
| Switching Capacity | 104 Gbps | Non-blocking |
| Forwarding Rate | 77.38 Mpps | Wire-speed |
| Stacking | 80 Gbps | StackWise-80 |
| Virtual Networks | 1 | SD-Access entry |
| MAC Table | 16,000 | Network scale |
| IPv4 Routes | 11,000 | Branch routing |
| IPv6 Routes | 1,500 | Future-ready |
| DRAM / Flash | 2 GB / 4 GB | System performance |
| Jumbo Frame | 9198 bytes | Large data transfer |
| Power Supply | PWR-C5-125WAC | 125W default PSU |
| Weight | 9.97 lb (4.53 kg) | Rack deployment |
| MTBF | 508,700 hours | High reliability |
Why Choose C9200L-48T-4G Ethernet Switch?
The C9200L-48T-4G is purpose-built for organizations that require high-density access without PoE overhead, making it a cost-effective, energy-efficient, and highly reliable solution.
Key Advantages:
-
Lower Power & Cooling Costs
Equipped with a 125W PSU, significantly reducing electricity usage compared to PoE switches - ideal for SMBs and green IT deployments -
Quiet Operation for Office Environments
Reduced heat and noise make it suitable for open offices, classrooms, and small network rooms -
High Reliability
With an MTBF of 508,700 hours, it ensures long-term stability for mission-critical wired infrastructure -
Flexible Licensing Options
Choose Essentials for basic routing or Advantage for advanced Layer 3 and segmentation -
Perfect for Standardized Deployment
A strong SKU for multi-site rollout, enterprise standardization, and reseller stocking -
Backed by Cisco Enhanced Limited Lifetime Warranty (E-LLW)
Ideal for data-only enterprise networks prioritizing efficiency, scalability, and reliability
